24/10/2025

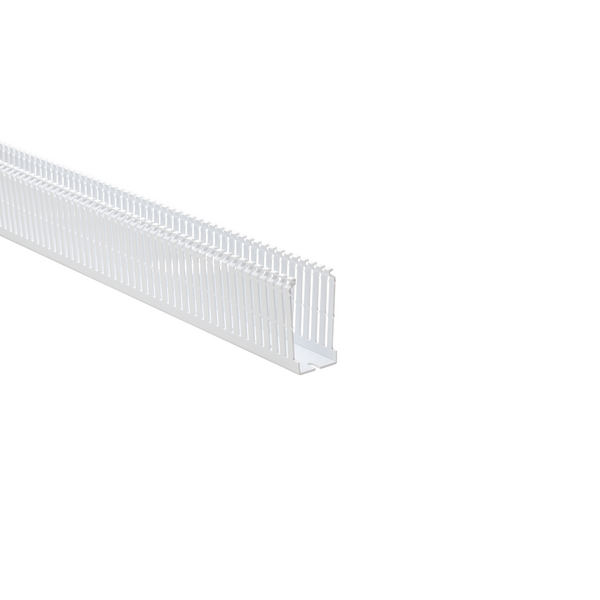

Wiring duct, 38.1x77.9mm, L=1.83m, white, 18.3m
Art.-No. 184-15301 | SLHDA1.5X3-PVC-WH |

Copied
Pressure-sensitive, rubber-based adhesive backing aids in temporary positioning.
Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.

    Add to watchlist
    Downloads
    Colour White (WH)
    Fixation Method adhesive
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SLHDA1.5X3-PVC-WH
    Package Content 18.3m
    Package Content packed in carton
    Type SLHDA1.5X3
    UV-Stabilised No
    Fixing Hole Centres (F) 2.0"
    Fixing Hole Centres (F) 50.8mm
    Height (H) 77.9mm
    Length (L) 1.83m
    Width (W) 38.1mm
    Width (W2) 38.1mm
    Width (W3) 4.1mm
    Width (W4) 10.2mm
    Width (W4) 0.4"
    Width (W5) 2.6"
    Width (W5) 66.0mm
    CE Certification Yes
    CSA Certified Yes
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026423005
    Packaging 1 - Qty 60
    Packaging 1 - Type carton
    Packaging 3 - Type box
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
