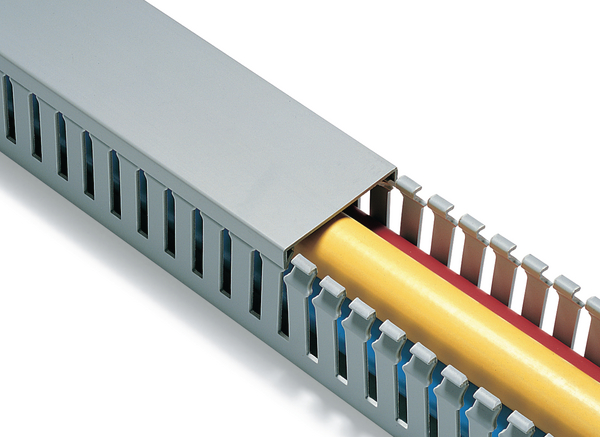

Wiring duct 75x50 mm, 2000 mm, PVC, grey
Art.-No. 185-10218 | TD-75X50-PVC-GY |  Details

    This product is not available anymore.
    • Narrow slots suitable for small-diameter wires
    • Smooth, burr-free edges protect installers from injury and wires from damage
    • Fingers can be removed with no sharp edges at pre-notched snap-off points
    • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
    • Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
    • Cover is flush with side of duct, allowing for tight, contiguous placement of ducts

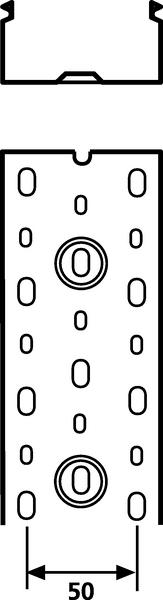

    • Base perforation according to DIN EN 50085
    Show more
    Add to watchlist
    Application TD wiring ducts are used to route and protect wires in control panels and switching systems.
    Application Tool 4FTOOL
    Colour Grey RAL 7030 (RAL7030)
    Current leak stable Yes/No Yes
    Fixation Method Screw Mounting
    Material Polyvinylchloride (PVC)
    Package Content packed in metre
    PART DESCRIPTION TD-75X50-PVC-GY
    Short Description Wiring duct 75x50 mm, 2000 mm, PVC, grey
    Type of side wall Slotted

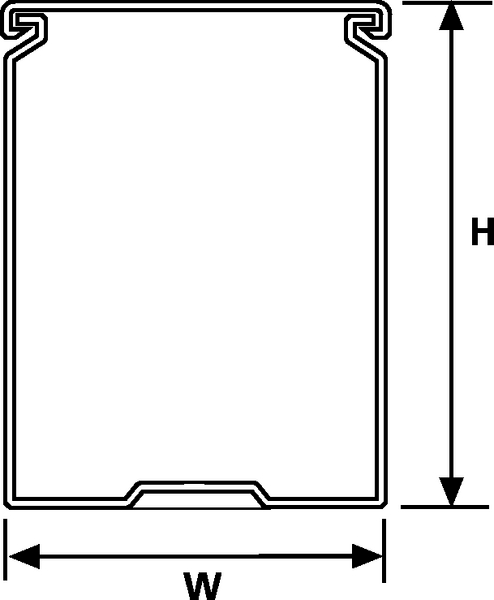

    Height (H) 50mm
    Length (L) 2000mm
    Width (W) 75mm

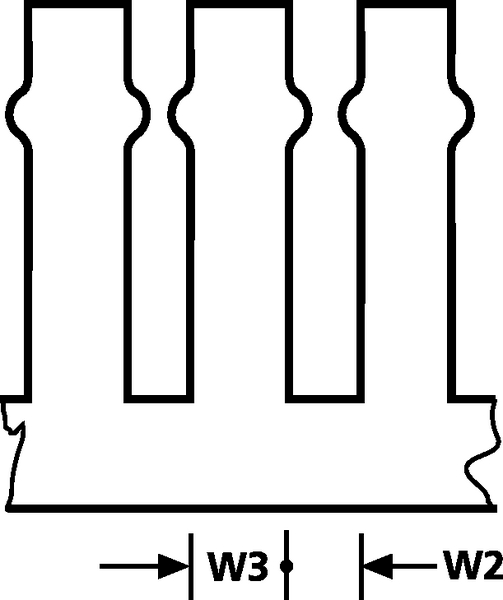

    Width (W2) 5mm
    Width (W3) 7.5mm
    Flammability UL 94 V0
    Operating Temperature -5 °C to +65 °C
    Specifications
    Specifications UL
    Country of Origin DE
    Customs Number 3925902000
    GTIN-13 / EAN 8015892510058
    Packaging 1 - Qty 24
    Packaging 1 - Weight (kg) 15.1920kg
    Packaging 2 - Qty 1
    Packaging 3 - Height (m) 0.19m
    Packaging 3 - Length (m) 2.03m
    Packaging 3 - Qty 24
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0733m³
    Packaging 3 - Weight (kg) 16.09kg
    Packaging 3 - Width (m) 0.19m
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000012
    ETIM 8.0 Key EC000012
    ETIM 9.0 Key EC000012
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
