Accessory, TSR, white, 1pc. (TSR-JBD)
Art.-No. 250-10013 | TSR-JBD-PVC-WH

Copied
Rubber-based foam tape adhesive with high ultimate-bond strength conforms to any surface.
Rubber based foam tape adhesive with high ultimate bond strength conforms to any surface.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.

    • Rubber based foam tape adhesive with high ultimate bond strength conforms to any surface.
    Add to watchlist
    Downloads
    Application Fitting frames for HellermannTyton's sockets, switches and exclusive accessories. They are used to equip accessories of all lines and sizes of wiring duct raceways.
    Brand Family TSR
    Color White (WH)

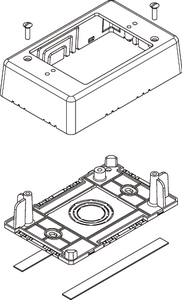

    Description Offered in dual or single gang format, HellermannTyton's Low Voltage Junction Boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for every TSR size of raceway to eliminate routing and installation inconvenience. all junction boxes come with adhesive strips on the back of the base and #6 screws to secure the box to the base.
    PART DESCRIPTION TSR-JBD-PVC-WH
    Packaging Type pack
    Part No. TSRW-JBD
    Short Desc. Dual Gang Junction Box, 1-1/2" Deep, 2-Piece, PVC, White, 1/bg
    Type TSR-JBD
    UV Resistant No
    Height (imperial) 1.50"
    Height (metric) 38.10mm
    Length (imperial) 4.83"
    Length (metric) 122.68mm
    Width (imperial) 4.91"
    Width (metric) 124.71mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-0
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3925900000
    Harmonized Tariff Schedule Code 3925.90.0000
    Pkg. Qty. 1EA
    Pkg. Qty. 1

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
