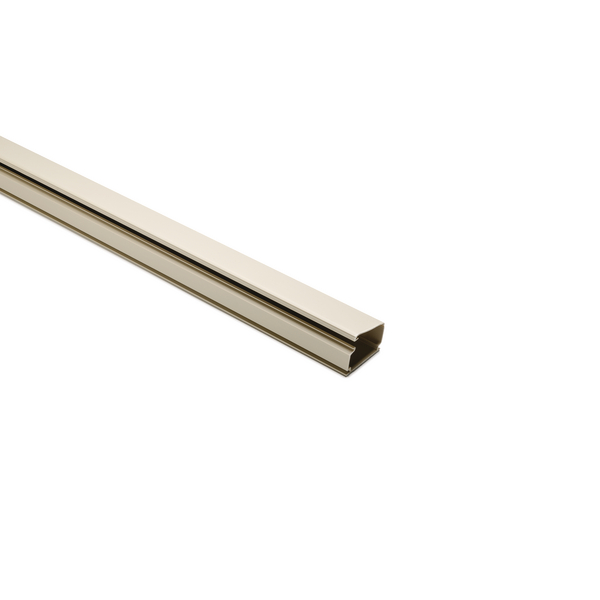

Accessory, TSR, beige, 36.58m (TSR3-6A)
Art.-No. 250-03601 | TSR3-6A-PVC-BGE

Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.
Flexible hinge is designed to reduce stress cracking and discoloration from repeated opening and closing.
Foam tape backing with rubber based adhesive conforms to any flat surface to assist with temporary positioning and mounting.
Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.

More products in this product group:

Application	Fitting frames for HellermannTyton's sockets, switches and exclusive accessories. They are used to equip accessories of all lines and sizes of wiring duct raceways.
Brand Family	TSR
Color	Ivory (IV)
Description	HellermannTyton surface raceway systems are the ideal solution for routing communication and power cables. No need to break into existing walls - raceway systems are designed to route cable along wall surfaces. Made of a PVC material, components are durable and affordable; and the one-piece construction and adhesive tape backing make positioning and mounting easy. HellermannTyton offers a low voltage TSR system and a power rated TSRP system that are available in three different diameters to accommodate different cable and wire bundle and conduit sizes. Both systems include a complete line of fittings and junction boxes that allow for clean and professional installations.
PART DESCRIPTION	TSR3-6A-PVC-BGE
Packaging Type	carton
Part No.	TSR3I-6A
Short Desc.	One Piece Surface Raceway, 1-3/4", 6.0 ft Long, PVC, Ivory, 120ft/Carton
Type	TSR3-6A
UV Resistant	No

Height (imperial)	1.0"
Height (metric)	25.40mm
Length (imperial)	6.0ft
Length (metric)	1.83m
Max. Bundle Diameter (imperial)	0"
Min. Bundle Diameter (imperial)	0"
Width (imperial)	1.75"
Width (metric)	44.45mm

Customs Number (Schedule B)	3925900000
Harmonized Tariff Schedule Code	3925.90.0000
Pkg. Qty.	120.0ft
Pkg. Qty.	36.58m
