TSRP - Power Rated Raceway
Art.-No. 250-60007 | TSRP-JB1-PVC-WH

Copied
Rubber based foam tape adhesive with high ultimate bond strength conforms to any surface.

    Add to watchlist
    Downloads
    Brand Family TSRP
    Color White (WH)

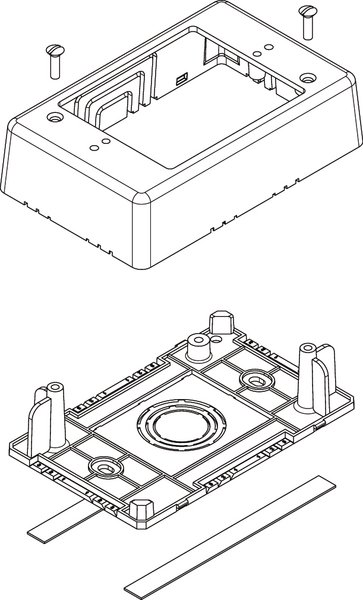

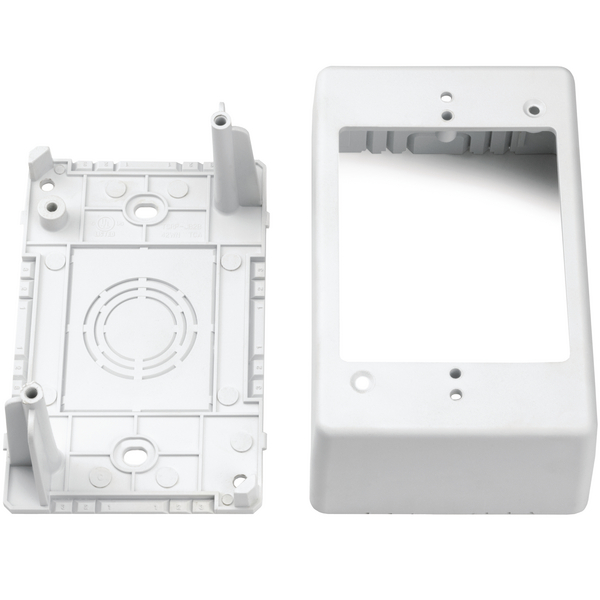

    Description Offered in a dual or single gang format, HellermannTyton’s low voltage junction boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for every TSR size of raceway, which eliminates routing and installation inconvenience. All five styles of junction boxes come with adhesive strips for the back of the base, and also #6 screws to secure the box to the base.
    PART DESCRIPTION TSRP-JB1-PVC-WH
    Packaging Type pack
    Part No. TSRPW-JB1
    Short Desc. Single Gang Junction Box, 1-1/4" Deep, PVC, White, 1/bg
    Type TSRP-JB1
    UV Resistant No
    Height (imperial) 1.25"
    Height (metric) 31.75mm
    Length (imperial) 4.75"
    Length (metric) 120.65mm
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Width (imperial) 3.0"
    Width (metric) 76.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-0
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL File Number [Logo] E211305 [cULus]
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3925900000
    Harmonized Tariff Schedule Code 3925.90.0000
    Pkg. Qty. 1
    Pkg. Qty. 1EA

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
