TSRP - Power Rated Raceway
Art.-No. 250-00205 | TSRP-JBD2-PVC-BGE

Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.
Flexible hinge designed to reduce stress cracking and discoloration from repeated opening and closing.
Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.
Enhanced “channel and lug” mating design provides a tighter, more secure fit between raceway lengths and fittings.
System is UL Listed for power up to 600 volts and meet UL5A and CSA 22.2.

More products in this product group:

Brand Family	TSRP
Color	Ivory (IV)

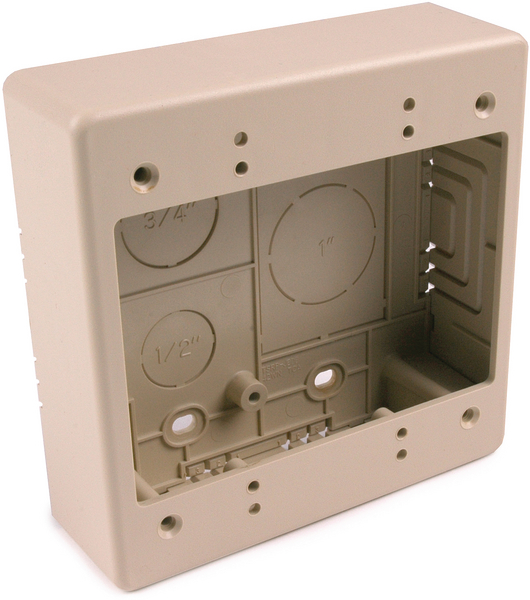

Description	Offered in a dual or single gang format, HellermannTyton’s power-rated junction boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for every TSRP size of raceway to eliminate routing and installation inconvenience. All junction boxes come with adhesive strips on the back of the base and #6 screws to secure the box to the base.
PART DESCRIPTION	TSRP-JBD2-PVC-BGE
Packaging Type	pack
Part No.	TSRPI-JBD2
Short Desc.	Dual Gang Junction Box, 2.77" Deep, 3-Piece, PVC, Ivory, 1/bg
Type	TSRP-JBD2
UV Resistant	No

Height (imperial)	2.77"
Height (metric)	70.36mm
Length (imperial)	4.94"
Length (metric)	125.48mm
Max. Bundle Diameter (imperial)	0"
Min. Bundle Diameter (imperial)	0"
Width (imperial)	5.02"
Width (metric)	127.51mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 V-0
Halogen Free	No
Material	PVC
Material	Polyvinylchloride - rigid molding grade (PVC)
Operating Temperature	+122°F (+50°C)
Prop65 Warning	No
REACH Conformity	No
ROHS compliant	Yes
UL File Number [Logo]	E211305 [cULus]
UL Listed (US and Canada)	Yes
UL Listed (US)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Customs Number (Schedule B)	3925900000
Harmonized Tariff Schedule Code	3925.90.0000
Pkg. Qty.	1
Pkg. Qty.	1EA
