TSRP - Power Rated Raceway
Art.-No. 250-00210 | TSRP-RB-PVC-WH

Copied

    • Pre-scored knockouts on the base and all four sides remove easily to accomodate all HellermannTyton TSR/TSRP raceway sizes.
    • Simple two-piece design is easy to install and includes foam tape backing with rubber based adhesive to assist with temporary positioning and mounting.
    • Accomodates a variety of alarm/detector and fixture makes and models.
    • PVC construction is lightweight and durable.
    • Covers are designed to overlap raceway mating points to hide uneven cuts.
    • Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A standards.
    • UL 5A Listed to 600V and CSA Certified to 300V (not to exceed 10 lbs. per UL and 5 lbs. per CSA.)
    Add to watchlist
    Downloads
    Brand Family TSRP
    Color Office White (OEWH)

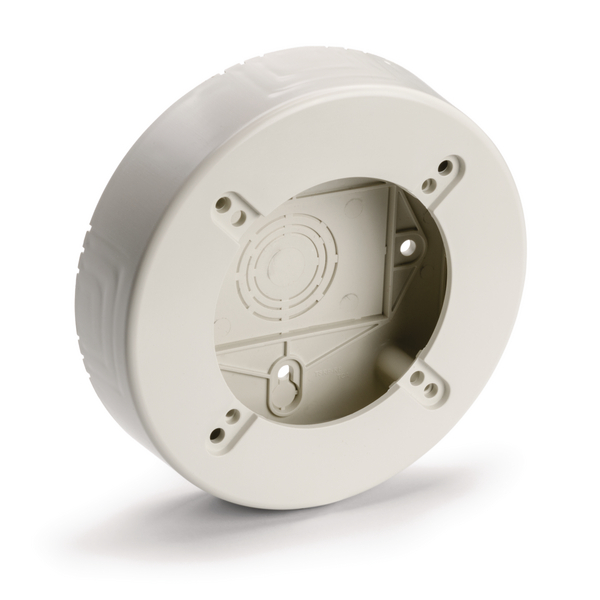

    Description Designed for mounting of low and line voltage fixtures such as hanging lights, smoke detectors, carbon monoxide detectors and security cameras, the TSRP round junction box complements HellermannTyton’s full line of power rated TSRP and low voltage TSR raceway systems. The TSRP round junction box is constructed of a durable PVC material and is available in white, office white and ivory to coordinate with all HellermannTyton surface mount raceway systems.
    PART DESCRIPTION TSRP-RB-PVC-WH
    Packaging Type pack
    Part No. TSRPFW-RB
    Short Desc. Round Junction Box, 1-1/4" Deep, PVC, Office White, 1/bg
    Type TSRP-RB
    UV Resistant No
    Height (imperial) 1.25"
    Height (metric) 31.75mm
    Length (imperial) 5.25"
    Length (metric) 133.35mm
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Width (imperial) 5.25"
    Width (metric) 133.35mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-0
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL File Number [Logo] E211305 [cULus]
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3925900000
    Harmonized Tariff Schedule Code 3925.90.0000
    Pkg. Qty. 1
    Pkg. Qty. 1EA
