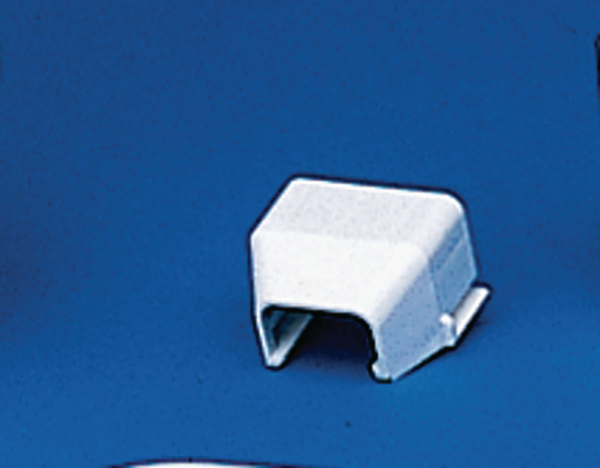

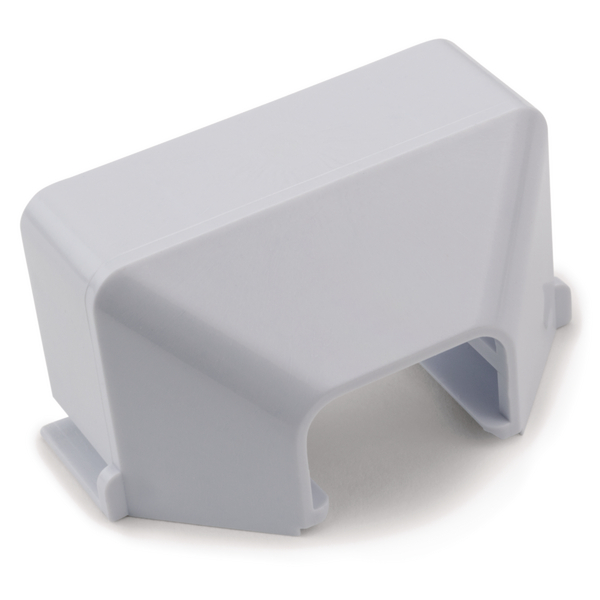

TSRP2-12-PVC-WH

Art.-No. 250-62122

| TSRP2-12-PVC-WH

|

UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.

Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.
Flexible hinge designed to reduce stress cracking and discoloration from repeated opening and closing.
Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.
Enhanced “channel and lug” mating design provides a tighter, more secure fit between raceway lengths and fittings.
System is UL Listed for power up to 600 volts and meet UL5A and CSA 22.2.

Add to watchlist

Downloads

Base Data

Colour	White (WH)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	TSRP2-12-PVC-WH
Package Content	10
Package Content packed in	pack
Type	TSRP2-12
UV-Stabilised	No

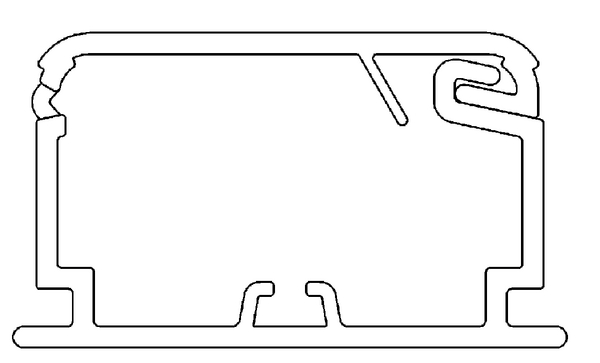

Product Dimensions

Height (H)	25.4mm
Length (L)	25.91mm
Wall (WT)	1.98mm
Wall (WT)	0.078"
Width (W)	47.75mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V0
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	Yes
UL Listed (US)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UL-File Number	E211305

Logistics and Packaging

Country of Origin	US
Customs Number	3925902000
GTIN-13 / EAN	4031026721996
Packaging 1 - Qty	10
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

ETIM 7.0 Key	EC000059
ETIM 8.0 Key	EC000059
ETIM 9.0 Key	EC000059
UNSPSC Key	39131711
