TSRP - Power Rated Raceway
Art.-No. 250-63500 | TSRP3-50-PVC-WH

Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
PVC construction is lightweight, durable and more affordable than metallic raceway systems.
Flexible hinge designed to reduce stress cracking and discoloration from repeated opening and closing.
Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.
TSRP raceway systems have an enhanced “channel and lug” mating design that provides a tighter, more secure fit between raceway lengths and fittings.
Solid fit enables the system to be UL Listed for power up to 600 volts and meet UL5A and CSA 22.2.

Brand Family	TSRP
Color	Office White (OEWH)
Description	HellermannTyton surface raceway systems are the ideal solution for routing communication and power cables. No need to break into existing walls - raceway systems are designed to route cable along wall surfaces. Made of a PVC material, components are durable and affordable; and the one piece construction and adhesive tape backing make positioning and mounting easy. HellermannTyton offers a low voltage TSR system and a power rated TSRP system that are available in three different diameters to accommodate different cable and wire bundle and conduit sizes. Both systems include a complete line of fittings and junction boxes that allow for clean and professional installations. TSRP surface raceway systems are designed to aesthetically organize and route either power or communications cables.
PART DESCRIPTION	TSRP3-50-PVC-WH
Packaging Type	pack
Part No.	TSRP3FW-50

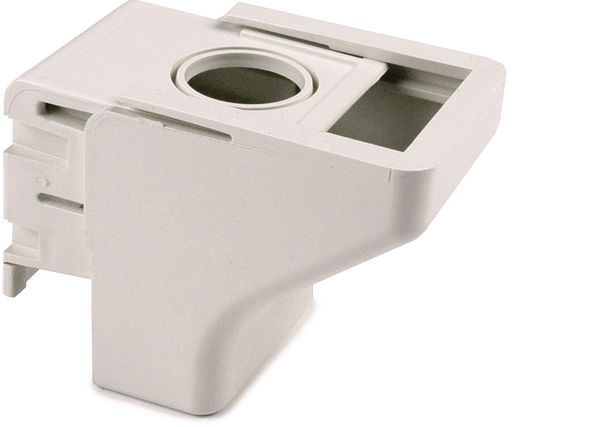

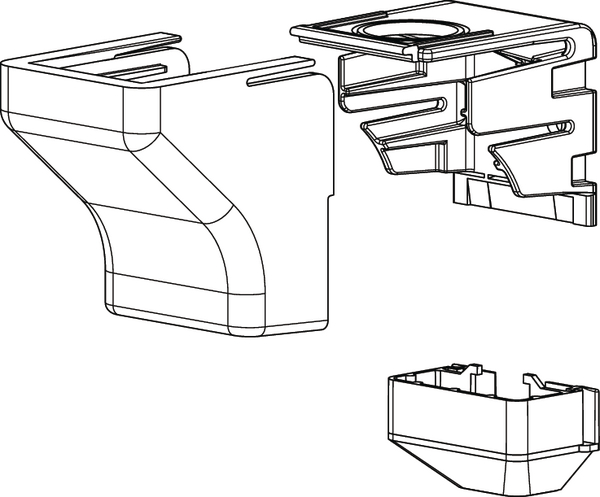

Short Desc.	Ceiling Drop, 1-3/4", 3-Piece, PVC, Office White, 10 Individual/bg
Type	TSRP3-50
UV Resistant	No

Height (imperial)	2.54"
Height (metric)	64.52mm
Length (imperial)	2.473"
Length (metric)	62.81mm
Max. Bundle Diameter (imperial)	0"
Min. Bundle Diameter (imperial)	0"
Wall Thickness (imperial)	0.07"
Wall Thickness (metric)	1.78mm
Width (imperial)	1.96"
Width (metric)	49.78mm

Customs Number (Schedule B)	3925900000
Harmonized Tariff Schedule Code	3925.90.0000
Pkg. Qty.	10
Pkg. Qty.	10Pieces
