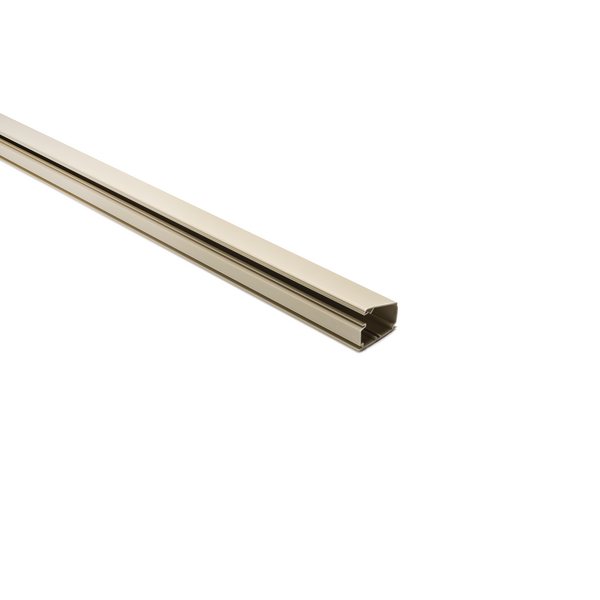

TSRP - Power Rated Raceway
Art.-No. 250-63801 | TSRP3-8A-PVC-BGE

Copied
Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
UL listed for power up to 600 volts, meeting UL5A and CSA.22.2 Number 62-93 Standards.

    • Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
    • U.L. Listed for power up to 600 Volts, meeting UL5A and CSA 22.2 Number 62-93 Standards.
    • Manufactured from UL 94V-0 rated PVC material.
    • Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A standards.
    • Large base for greater adhesive surface.
    • Rubber-based foam tape adhesive with high ultimate bond strength, which conforms to any surface.
    • Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking.
    • Junction boxes can be used for electrical or data outlets.
    • Designed to complement HellermannTyton’s industry standard TSR low voltage raceway system.
    Add to watchlist
    Downloads
    Brand Family TSRP
    Color Ivory (IV)
    PART DESCRIPTION TSRP3-8A-PVC-BGE
    Packaging Type carton
    Part No. TSRP3I-8A
    Short Desc. One Piece Power Rated Raceway, 1-3/4", 8.0 ft Long, PVC, Ivory, 160ft/Carton
    Type TSRP3-8A
    UV Resistant No
    Height (imperial) 1.0"
    Height (metric) 25.40mm
    Length (imperial) 8.0ft
    Length (metric) 2.44m
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Width (imperial) 1.75"
    Width (metric) 44.45mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-0
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL File Number [Logo] E192902 [cULus]
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3925900000
    Harmonized Tariff Schedule Code 3925.90.0000
    Pkg. Qty. 160.0ft
    Pkg. Qty. 48.80m
