Save time and space in your cabinet with the VarioPlate Cable Entry System.

Find out more on how to route and seal different sized cables with VarioPlate.



VarioPlate Cable Entry System is used to route and seal cables of different sizes. VarioPlate Cable Entry System is used to route and seal cables of different sizes.

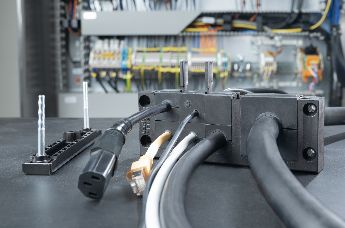

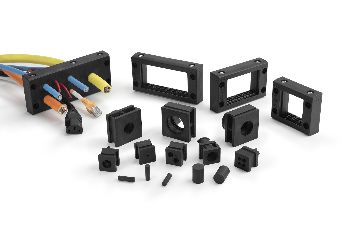

The VarioPlate Cable Entry System is used to install multiple cables of different diameters, with or without pre-terminated plugs or connectors, or wherever space is limited. It is available in 4 different frame sizes (24, 16, 10 and 4) which correspond to the cut-out dimensions commonly used in panel building. Combinable grommets with 1, 2 or 4 holes, are available for cable diameters ranging from 3-16 mm (size S) and 16-33 mm (size L).



System benefits at a glance:

An overview of all product benefits:
  • Modular design saves you time and space
  • Easy to assemble and adapt
  • Integrated frame gasket seals up to IP66
  • Small and large grommets combinable in one frame
  • Inserts include moulded strain relief retainer
  • Design of insert hole compensates for cable diameter tolerance
  • Suitable for all common cut-out dimensions
  • IP65 and IP66 approved design


Easy as 1-2-3: the VarioPlate configurator.

Choose your cable entry solution in three steps.

1.    Choose between four frame sizes
2.    Combine grommets (1, 2 or 4 holes) for your cable diameters
3.    Print or save the data directly to your computer

 Quick and easy, in a few simple steps!

Save time during installation:

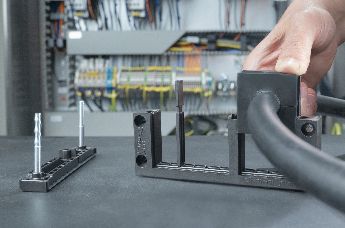

Step 1: open the frame to insert the grommets

Step 1: remove the upper frame and install grommets

Step 2: choose your grommets in small and large size

Step 2: combine grommets (1, 2 or 4 holes) for cable diameters from 3 to 33 mm

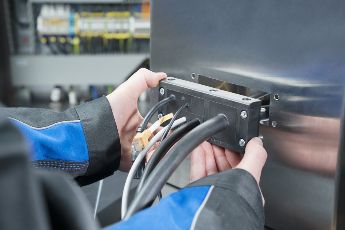

Step 3: close and apply to the cabinet

Step 3: close the upper frame and bolt firmly onto enclosure
