31/10/2025

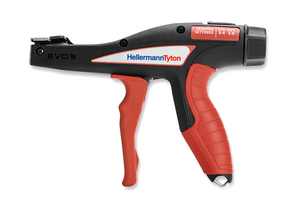

Cable tie tool for 4.6-13.5mm, manual, 0.357kg, red/black
Art.-No. 110-80002 | EVO9-MET/PL-BK/RD |

Copied
Ergonomic, slip-proof handle for a comfortable and secure grip.

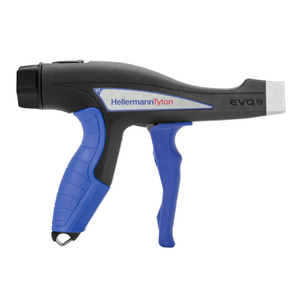

The EVO9 with TLC technology.
The EVO9 application tool for easiest operation due to TLC technology.

    This product is not available anymore.

    Alternative product available

    • Standard grip span (90 mm) and short grip span (80 mm) available

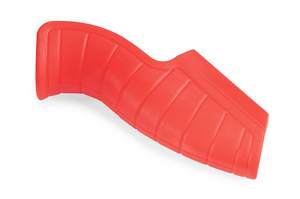

    • Ergonomic, slip-proof handle for a comfortable and secure grip
    • Extremely low-maintenance
    • Fast and precise application with minimum effort (TLC-technology)
    • Convenient and simple tension adjustment
    • Integrated 3 position quick adjustment override (EVO9/EVO9SP/EVO9HT)
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    Add to watchlist
    Downloads

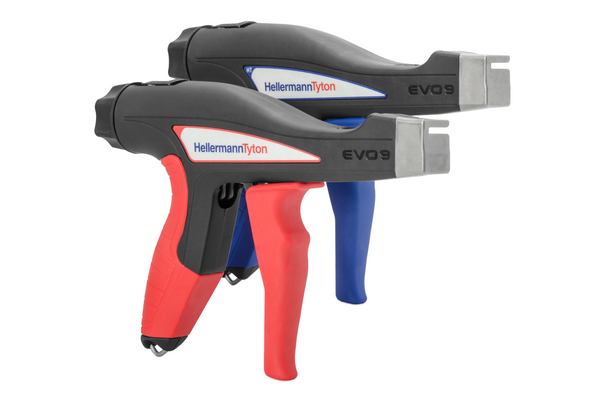

    Application The EVO9 is available in a standard grip span 90 mm (EVO9) or short grip span 80 mm (EVO9SP), for smaller hands. Both tools perform between 53 N and 307 N. The EVO9HT (high tension) was designed to apply HellermannTyton cable ties from 120 N until 516 N with a maximum width of 13.5 mm.
    Colour Red (RD), Black (BK)
    Description EVO9
    For Cable Tie Width 4.6-13.5mm
    For Ties T50, T80, T120, T150, T250, T255, WS, LK2, LK3, LK5, GL, ECO Series
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO9-MET/PL-BK/RD
    Package Content 1pc.
    Package Content packed in carton
    Product Family EVO9 up to 13.5 mm strap width
    Product Group Manual tensioning tool plastic housing
    Short Description Manual Tensioning Tool for Cable Ties up to 13.5 mm strap width
    Strap Thickness max. 2.0mm
    Technical Description Standard Hand Span 90 mm
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO9
    Weight/Unit 0.357kg
    Height (H) 135mm
    Length (L) 191mm
    Strap Width max. 13.5mm
    Strap Width max. (G) 0.5"
    Width (W) 33mm
    CE Certification No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Nato number 5120-12-406-3392
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 82055980
    GTIN-13 / EAN 4031026511306
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.235m
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.002391125m³
    Packaging 1 - Weight (kg) 0.597kg
    Packaging 1 - Width (m) 0.185m
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
