Cable tie tool for 2.5 - 2.5mm, electrical, 21kg, metal
Art.-No. 105-00013 | QS-101 NEW-MET-ML |

Copied

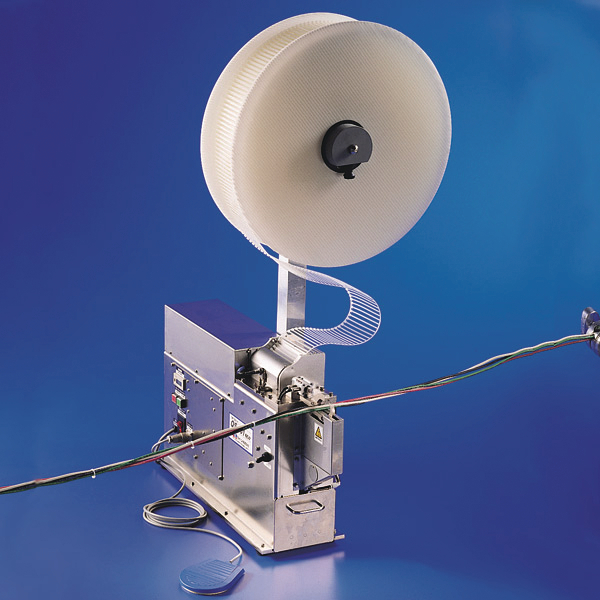

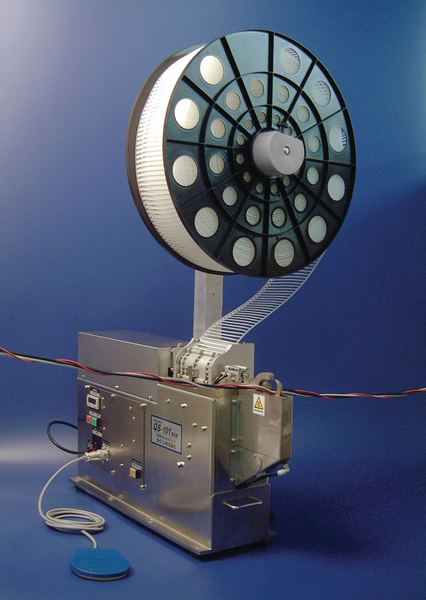

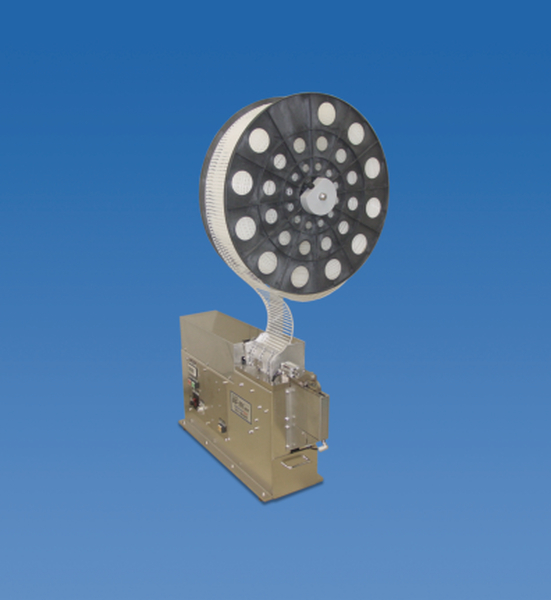

The Quick Tool is an automatic bench mount system suited for high volume cable tie applications.
The Quick Tool is an automatic bench mount system suited for high volume cable tie applications.

    • Automatic binding machine of desk type and air type (maximum binding diameter: 16.0 mm).
    • •Desktop installation type. Bundled by pressing the foot pedal that you can work with both hands.
    • •Easy to install anywhere with power supply (AC100V ~ AC240V) and air supply equipment.
    • •A stable and reliable bundling operation.
    Add to watchlist
    Application Harness Binding
    Air Pressure (max.) 6Bar
    Colour Metal (ML)
    For Cable Tie Width 2.5 - 2.5mm
    Material Metal (MET)
    Operation electrical
    Operational Voltage AC100V／AC240V
    PART DESCRIPTION QS-101 NEW-MET-ML
    Package Content 1pc.
    Package Content packed in carton
    Product Family Autotool QS101 NEW
    Product Group Bench Mount Automatic bundling up to ⌀ 16 mm
    Tool suitable cable tie material Plastic
    Type QS-101 NEW
    Wattage 20W
    Weight/Unit 21kg
    for Air Pressure min - max - 6
    Bundle ⌀ 0.7-16mm
    Bundle ⌀ max. 16mm
    Bundle ⌀ min. 0.7mm
    Height (H) 770mm
    Length (L) 630mm
    Width (W) 210mm
    Country of Origin JP
    GTIN-13 / EAN 4944387970791
    UNSPSC Key 27112410
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.

    Cable tie guns >
