Cable tie mount for edge, T=0 - 5.0mm, black/green, 200pcs.
Art.-No. 151-01565 | BCAA-PA66HSGF30-BK/GN |  Details

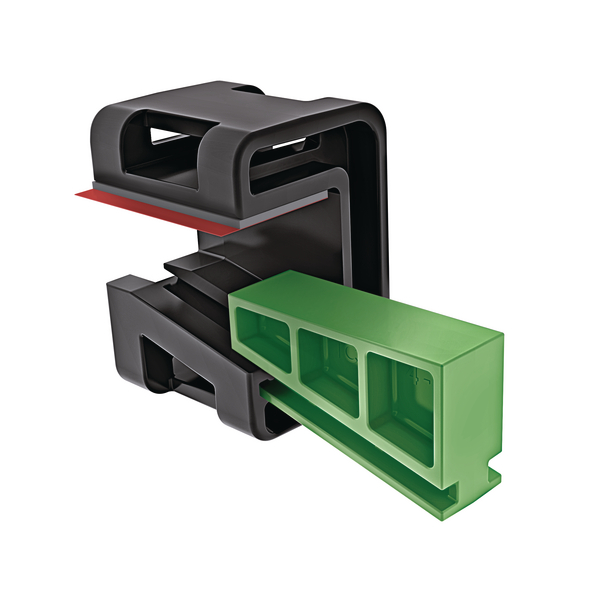

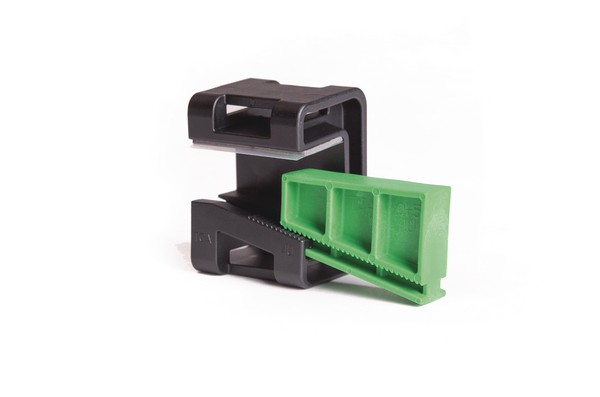

The Beam Clamp can be fixed onto a beam with a wedge. Up to two bundles can be routed on the top or rear side of the clamp.

    • Easy to install
    • No damage to surfaces
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    • Applicable to a wide range of panel thicknesses
    Show more
    Add to watchlist
    Downloads
    Application Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting. These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
    Colour Black (BK), Green (GN)
    Fixation Method Edge Clip
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, heat stabilised, glass-fibre reinforced (PA66HSGF30)
    Pack Cont. 200pcs.
    Package Content packed in bag
    PART DESCRIPTION BCAA-PA66HSGF30-BK/GN
    Product Family Beam clamps / Wedge clips
    Product Group Heavy Duty Harness Clips
    Short Description Beam clamp for heavy duty applications
    for Panel Thickness min - max 0 - 5 mm
    Height (H) 43.10mm
    Height (H2) 12.5mm
    Length (L) 30.8mm
    Length (L2) 27.0mm
    Panel Thickness max. 0 - 5.0mm
    Strap Width max. (G) 15.0mm
    Strap Width max. (G) 0.59"
    Weight/Unit 0.02228kg
    Width (W) 28.6mm
    Adhesive Acrylic foam
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +140 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026550701
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.59m
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03115m³
    Packaging 1 - Weight (kg) 4.456001kg
    Packaging 1 - Width (m) 0.33m

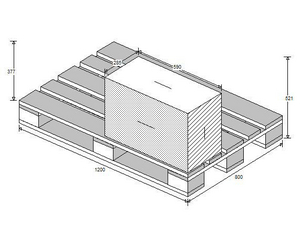

    Packaging 3 - Height (m) 0.377m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 600
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0634m³
    Packaging 3 - Weight (kg) 14.185003kg
    Packaging 3 - Width (m) 0.285m

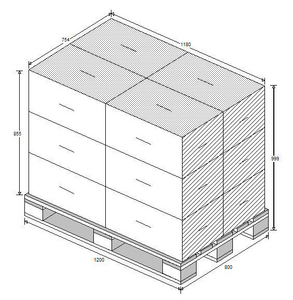

    Packaging 4 - Height (m) 1.275m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 7200
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.224m³
    Packaging 4 - Weight (kg) 191.22kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
