26/04/2026

Cable tie mount for edge, T=17.0 - 21.0mm, black, 200pcs.
Art.-No. 151-04369 | BCELGA-PA66GF30-BK

Copied

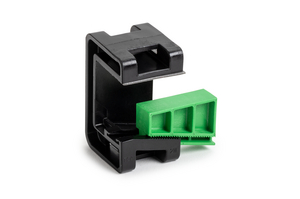

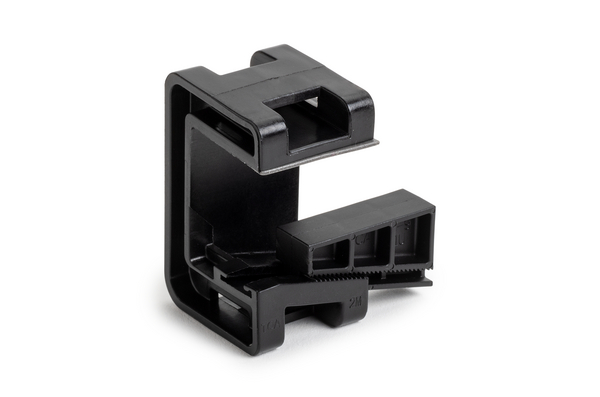

Beam Clamp, Side view
Beam Clamp, Front view
Our two Beam Clamps with three different wedges for diverse sheet thicknesses.
Two-piece ratcheting wedge design allows for easy, positive-locking size adjustment.

    • Easy to install
    • No damage to surfaces
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    • Applicable to a wide range of panel thicknesses
    Add to watchlist
    Downloads e-Learning
    Application Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting.
    These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
    Colour Black (BK)
    Description The Wedge Clip, paired with any HellermannTyton heavy duty cable tie, routes cables along a frame or rail in vertical or horizontal applications. A robust design and durable materials make it ideal for extreme-duty applications. The integrated wedge mechanism slides along a stepped grade until snug against the mounting surface. Inside the clip is a 3M™ VHB™ (Very High Bond) adhesive pad, which actually builds strength over time. This holds the clip to the work surface instantly, enabling installers to place it into position without worrying about it falling off prior to fastening. The combination of adhesive and the clip’s vice-like compression result in incredible pull-off resistance without the need to drill holes.
    Fixation Method Edge Clip
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF30)
    PART DESCRIPTION BCELGA-PA66GF30-BK
    Package Content 200pcs.
    Package Content packed in bag
    Product Family Beam clamps / Wedge clips
    Product Group Heavy duty harness clips
    Short Description Beam clamp for heavy duty applications
    Type BCELGA
    UV-Stabilised Yes
    Height (H) 57.3mm
    Height (H2) 12.5mm
    Length (L) 30.8mm
    Length (L2) 27.0mm
    Panel Thickness 17.0 - 21.0mm
    Width (W) 36.5mm
    for Panel Thickness min - max 17 - 21 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +140 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026754833
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
