28/03/2024

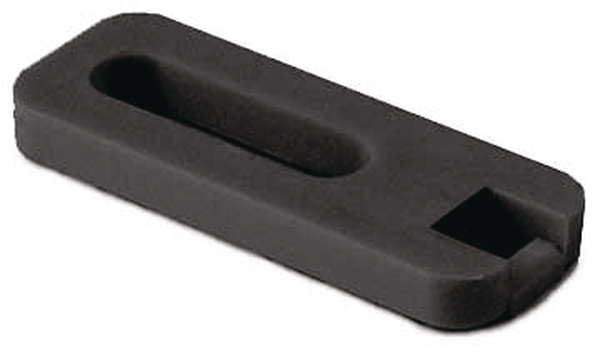

Cable tie mount for screw fixation, Ø5.0 x 19.0 mm, #10 (M5) Screw, black, 100pcs.
Art.-No. 151-00289 | CTAP1-PA66-BK Details

  • Suitable for applications with minimal space
  • Mounted before cable installation and in line with cable
  • CTAP mounts offer adjustable stand off feature for precision placement
Package size
Application Each of these products offers particular benefits, but all are designed for simple, yet robust, installation in a wide variety of applications - particularly used in telecoms equipment, switchgear and control cabinets.
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
For Ties T18 - T50
Material Polyamide 6.6 (PA66)
Mounting Screw Type #10 (M5) Screw
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION CTAP1-PA66-BK
Product Family CTAM-Series for applications where space is limited
Product Group Screw fixing mounts
for Hole ∅ (FH) 5.0 x 19.0 mm
Height (H) 3.80mm
Length (L) 34.0mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) 0.2"
Width (W) 12.7mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Specifications
Specifications UL
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
Country of Origin US
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
