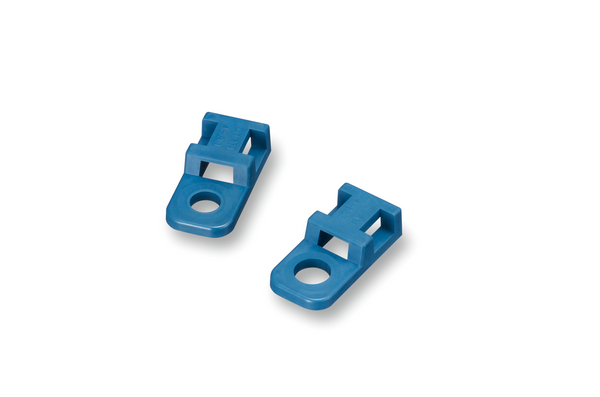

Cable tie mount for screw fixation, Wmax=5.0mm, ⌀5.1 mm, M5 Screw, blue, 100pcs.
Art.-No. 151-03838 | MCXRCTAM2-PA66MDXRAYD-BU |

Copied
CTAM mounts for applications with limited space.
Cable Tie Mounts CTAM.
Detectable fixing solution containing of MCCTAM1 mount and MCTS cable tie.
CTAM-Series in application
CTAM-Series (plan view)
CTAM-Series (side view)

    • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
    • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
    • Greatly reduced risk of contamination within food products
    • Can support quality assurance in the production of food stuffs, for example HACCP
    Add to watchlist
    Downloads
    Application MCXR screw fixing mounts are ideally suited for fixing wiring in position where food factory and pharmaceutical manufacturing site.
    Colour Blue (BU)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, metal detectable, X-ray detectable (PA66MDXRAYD)
    Mounting Screw Type M5 Screw
    PART DESCRIPTION MCXRCTAM2-PA66MDXRAYD-BU
    Package Content 100pcs.
    Package Content packed in bag
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts
    Type MCXRCTAM2
    Height (H) 5.1mm
    Length (L) 20.5mm
    Strap Width max. (G) 5.0mm
    Width (W) 10.2mm
    for Hole ⌀ (FH) 5.1 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Country of Origin JP
    GTIN-13 / EAN 4944387125214
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
