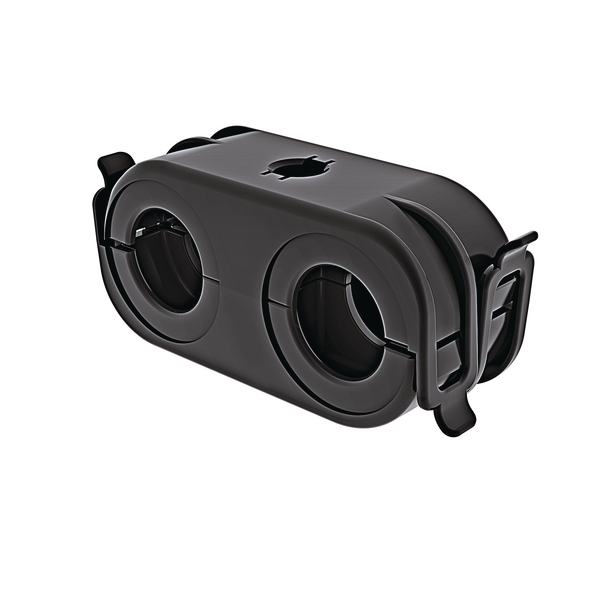

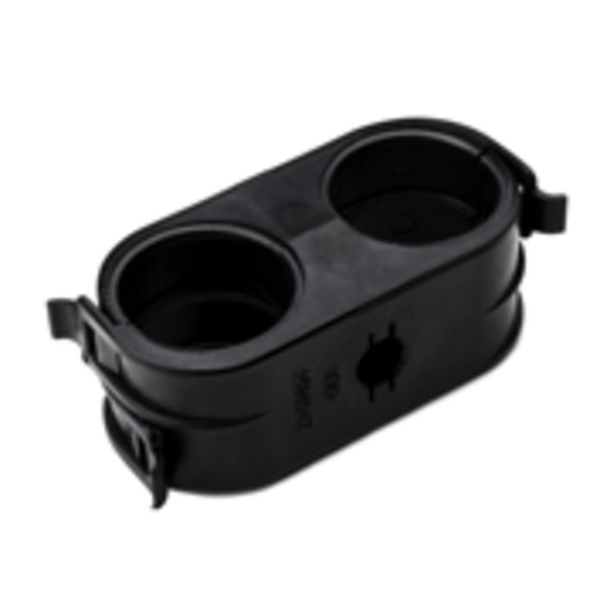

Cable tie mount with pipe/tube holder/for screw fixation, ⌀8.12 mm, black, 500pcs.
Art.-No. 133-00993 | HC2A-PA66HIRGF13-BK

Copied
957456
HC2A
18905
Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener.
Clip includes an internal rib that spans the inside of the bracket to fit securely into the profile of the tubing to prevent lateral movement and slipping of the tubing.

    This product is not available anymore.
    • Separates and secures bundles avoiding abrasion.
    • Designed to handle both convoluted tubing and bundles not covered in convoluted tubing.
    • Available in a variety of sizes and colors to be easily identified.
    Add to watchlist
    Downloads e-Learning
    Colour Black (BK)
    Key product features for multiple routing, vibration absorbing, lockable
    Material Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13)
    PART DESCRIPTION HC2A-PA66HIRGF13-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family multi parallel routing
    Product Group Fixing elements for tubes and harnesses
    Type HC2A
    Variant Separators
    Weight/Unit 0.014kg
    ⌀ max. 1. loop 24.39mm
    ⌀ max. 2. loops 24.39mm
    Bundle ⌀ 24.39-24.3mm
    Bundle ⌀ max. 24.3mm
    Bundle ⌀ min. 24.39mm
    Height (H) 34.94mm
    Length (L) 67.77mm
    Width (W) 27.94mm
    for Hole ⌀ (FH) 8.12 mm
    CE Certification No
    ELV compliant (Article 4 - 2) Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026454887
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 14.017kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 21.034kg
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
