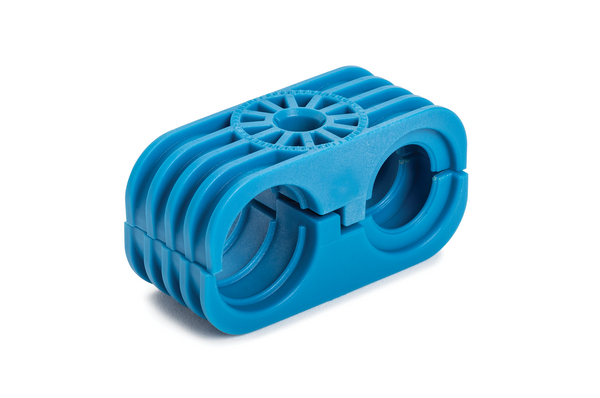

Cable tie mount with pipe/tube holder, Ø8.2 mm, blue, 600pcs.
Art.-No. 151-03255 | HDCM2C-PA66GF15-BU |  Details

Separates and secures bundles or convoluted tubing to prevent abrasion.

    Add to watchlist
    Colour Blue (BU)
    Key product features for multiple routing, releasable
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15)
    Pack Cont. 600pcs.
    Package Content packed in bag
    PART DESCRIPTION HDCM2C-PA66GF15-BU
    Variant Separators
    for Hole ∅ (FH) 8.2 mm
    Height (H) 34mm
    Length (L) 69.1mm
    Width (W) 28.48mm
    ∅ max. 1. loop 23.7mm
    ∅ max. 2. loops 17.20mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C
    Specifications
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026646572
    Packaging 1 - Qty 600
    Packaging 1 - Type box
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
