Cable tie mount, black, 84pcs.
Art.-No. 156-03634 | HDEC12-14-PRE-PA6GF30/C75S-BK |

Copied

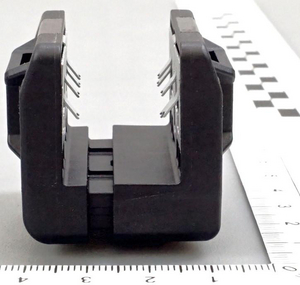

2-piece edge clip for heavy duty 12-14mm assembled
2-piece edge clip for heavy duty 14-16mm pre-assembled

    Add to watchlist
    Downloads

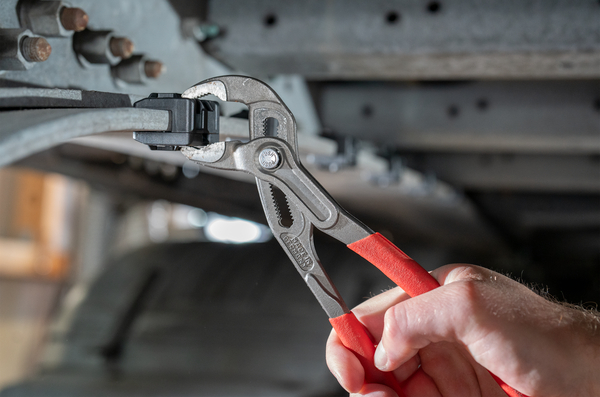

    Application The new Heavy Duty EdgeClips are specifically designed for high-load applications in challenging environments such as truck manufacturing, wind energy systems, and industrial installations including steel construction and structural beams. Installation can be carried out using either a dead blow hammer or, for the HDEC-Pre versions, water pump or channel lock pliers, offering flexibility on-site. The design allows for parallel routing of up to three cables and lines, supporting organized and efficient cable management even under demanding conditions.
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6, glass-fibre reinforced (PA6GF30), Steel C75S (C75S)
    PART DESCRIPTION HDEC12-14-PRE-PA6GF30/C75S-BK
    Package Content 84pcs.
    Package Content packed in box
    Type HDEC12-14-PRE
    Weight/Unit 0.04057kg
    Weight/Unit 0.04057kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026759876
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 84
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 4.22788kg
    Packaging 3 - Width (m) 0.386m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
