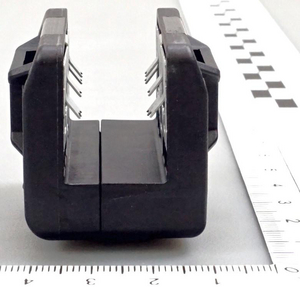

Cable tie mount for edge, T=14.0 - 16.0mm, black, 384pcs.
Art.-No. 156-03630 | HDEC14-16-PA6GF30/C75S-BK |

Copied

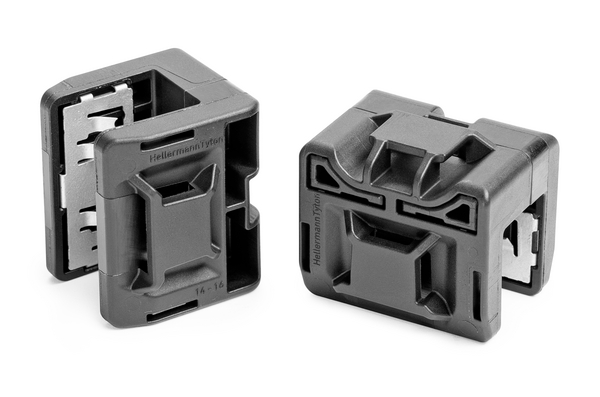

2-piece edge clip for heavy duty 14-16mm pre-assembled

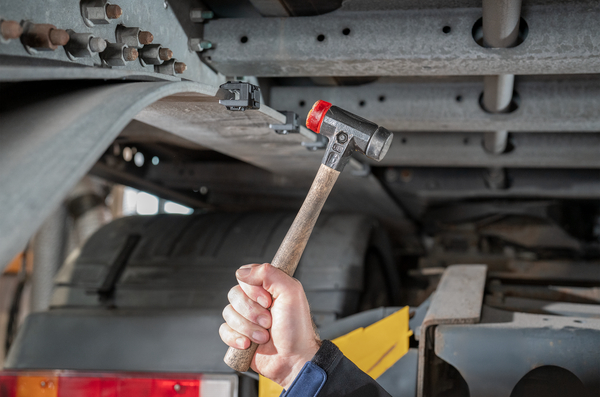

Robust and reliable: The Heavy Duty EdgeClip is hammered into place — engineered for high-load applications in tough environments like truck manufacturing and steel construction.

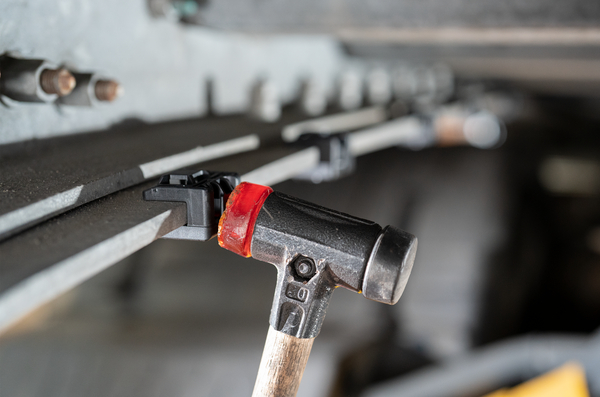

Close-up strength: A PFAS-free EdgeClip takes its final position—secure, durable, and made for demanding industrial use.
Clean and safe finish: After securing all cables, our tool ensures a close-fitting cut — preventing sharp edges and protecting cables from damage.
Secure and properly finished: Heavy Duty EdgeClips hold heavy-duty cables firmly in place – professionally tensioned and cut to protect against sharp edges and cable damage.
2-piece edge clip for heavy duty 14-16mm assembled

    • PFAS-free metal clamp for environmentally conscious applications
    • Supports up to three cable ties for secure multi-cable bundling

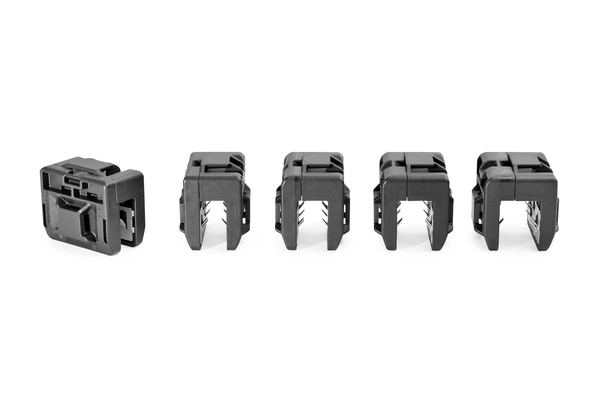

    • Compatible with five panel thicknesses: 6–8 mm, 8–10 mm, 10–12 mm, 12–14 mm, and 14–16 mm
    • Heavy-duty design ensures reliable performance in demanding environments
    Add to watchlist
    Downloads
    Application The new Heavy Duty EdgeClips are specifically designed for high-load applications in challenging environments such as truck manufacturing, wind energy systems, and industrial installations including steel construction and structural beams. Installation can be carried out using either a dead blow hammer or, for the HDEC-Pre versions, water pump or channel lock pliers, offering flexibility on-site. The design allows for parallel routing of up to three cables and lines, supporting organized and efficient cable management even under demanding conditions.
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6, glass-fibre reinforced (PA6GF30), Steel C75S (C75S)
    PART DESCRIPTION HDEC14-16-PA6GF30/C75S-BK
    Package Content 384pcs.
    Package Content packed in box
    Product Family HDEC-Series for heavy duty applications
    Product Group Heavy Duty EdgeClip
    Type HDEC14-16
    Variant Edge Clip
    Weight/Unit 0.023426kg
    Height (H) 36.0mm
    Height (H2) 23.0mm
    Length (L) 40.0mm
    Panel Thickness max. 14.0 - 16.0mm
    Width (W) 37.0mm
    for Panel Thickness min - max 14 - 16 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    PFAS-free Yes
    ROHS compliant Yes
    Reusable (Yes/No) No
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026759869
    Packaging 1 - Height (m) 0.17m
    Packaging 1 - Length (m) 0.288m
    Packaging 1 - Qty 96
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.00871488m³
    Packaging 1 - Weight (kg) 2.378896kg
    Packaging 1 - Width (m) 0.178m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 384
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 10.477584kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 7680
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 230.552kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
