Cable tie mount for adhesive use, Wmax=13.0mm, black, 100Bag
Art.-No. 151-03196 | PMB8-PA66/6HIRHS-BK |

Copied

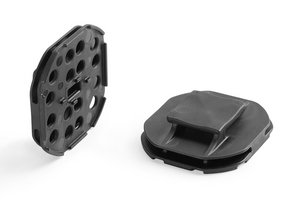

PMB8 paste adhesive mount for fixing with paste/liquid adhesive.
Our PMB mount (paste mount adhesive) as an adhesive fastening for a strong hold, even overhead.
Our PMB-series size comparison – suitable for tighter spaces and areas where a strong, vibration-resistant hold is required.
PMB8, PMB6 Mount (plan view)
PMB8, PMB6 Mount (front view)

    • PMB paste adhesive mount for fixings with paste / liquid adhesive
    • Mount geometry offers a good form closure with cured adhesive
    • Can even be installed onto uneven surfaces
    Add to watchlist
    Downloads
    Application PMB-Series offers a fixing solution wherever screw fixing is not allowed. Due to the design the mounts can even be installed onto uneven surfaces. PMB paste mounts are used in the railway industry as well as in the renewable energy industry. Further applications are in the electrical industry and the production of switching cabinets. PMB-Series is suitable for fixings with paste/liquid adhesive.
    Colour Black (BK)
    Fixation Method Pasting / Stick
    Key product features liquid/paste adhesive, uneven surfaces
    Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
    PART DESCRIPTION PMB8-PA66/6HIRHS-BK
    Package Content 100Bag
    Package Content packed in bag
    Product Family PMB mount for uneven surfaces
    Product Group Paste adhesive mount
    Short Description Paste Adhesive Mount Black HIRHS
    Type PMB8
    UV-Stabilised No
    Weight/Unit 0.007175kg
    Height (H) 11.2mm
    Length (L) 50mm
    Strap Width max. (G) 13.0mm
    Width (W) 47mm
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026643779
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.731362kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.738344kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 215.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
