Cable Tie Mounts Q-Series : QM40

Screwable Fixing Mount 40x40 natural, Article number: 151-10903

Features

  • Screwable versions
  • Perfect for combination with Q-ties
  • 4-way entry for Q-tie
  • Q-Mount base locks Q-tie in vertical position, means the hands are free to apply cables

Certifications & Approvals

Application

Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required.

Q-Mount Series QM, screwable is suitable for following markets and industries

  • Electronics Industry Electronics Industry
Colour Natural (NA)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type #8 (M4) Screw
Pack Cont. 50pcs.
Package Quantity per bag
PART DESCRIPTION QM40-PA66-NA
Product Family Q-Mount Series QM, screwable
Product Group Cable Tie Mounts Q-Series
Short Description Screwable Fixing Mount 40x40 natural

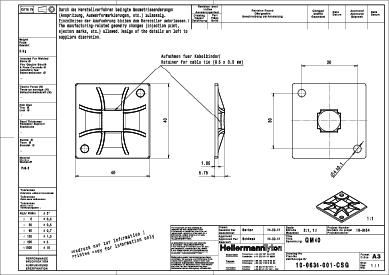

Fixing Hole Centres (F) 30.0mm
Fixing Hole Centres (F) 1.19"
for Hole ∅ (FH) 4.1 mm
Height (H) 5.5mm
Length (L) 40.0mm
Strap Width max. (G) 8.4mm
Strap Width max. (G) 0.31"
Width (W) 40.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026413730
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 50
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.1557kg
Packaging 1 - Width (m) 0.16m
Weight 0.1496kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121703
