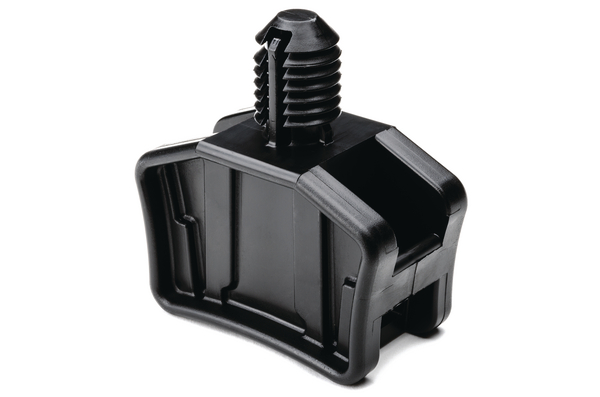

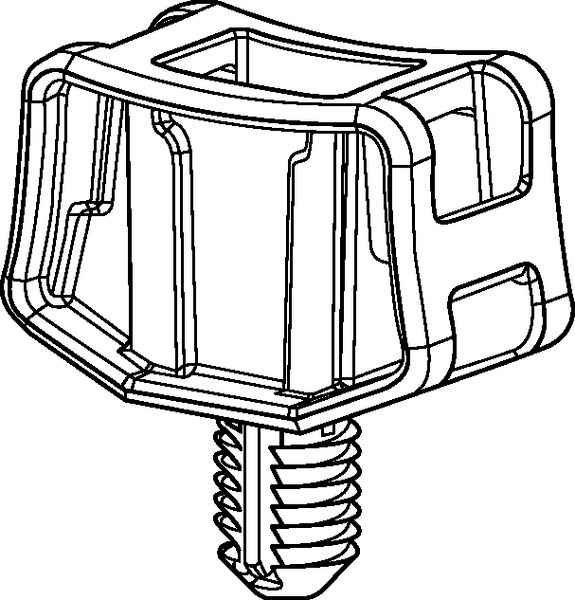

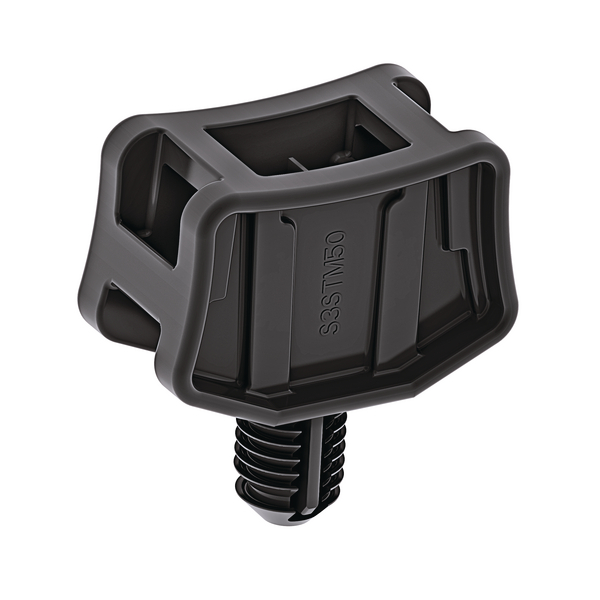

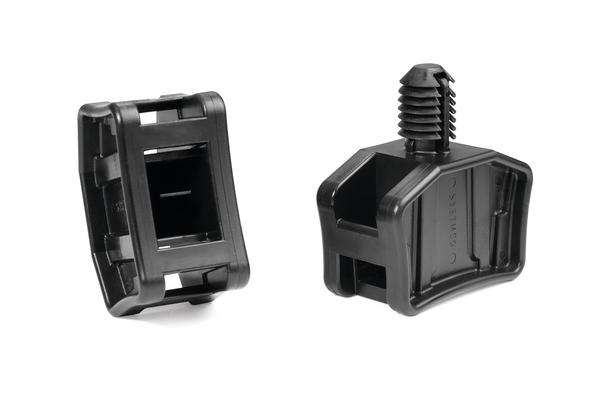

Fixing elements with fir tree, for distance routing : S3STM50
Fixing element 50x22 mm, with fir tree, high impact, heat and UV stabilised, black, Article number: 151-29500
Features

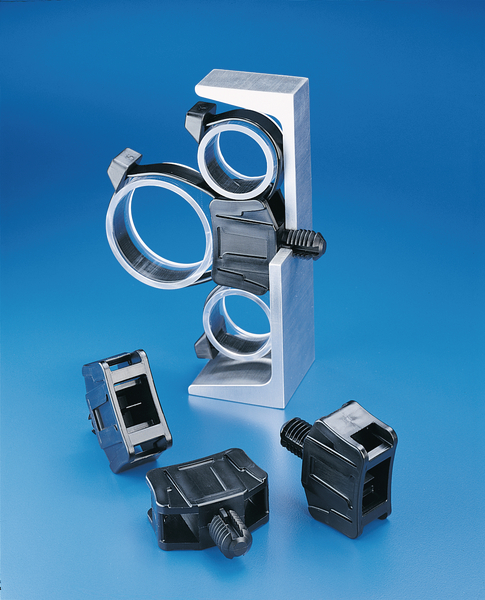

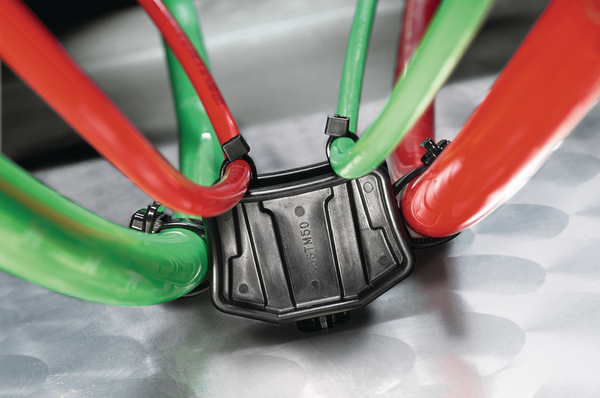

- For parallel routing of four bundles
- Secure alignment to the bundle due to H-design
- For cable ties up to 12.7 mm wide
- Pre-fixing of tie with integrated nose
Certifications & Approvals
Application
With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.
S3STM50 is suitable for following markets and industries
-
Automotive Industry
-
Electronics Industry
-
Defence Industry
More products in this product group
Fixing elements with fir tree, for distance routing >| Colour | Black (BK) |
| Fixation Method | with Fir Tree (Mounts) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | S3STM50-PA66HIRHSUV-BK |
| Product Family | S3STM50 |
| Product Group | Fixing elements with fir tree, for distance routing |
| Short Description | Fixing element 50x22 mm, with fir tree, high impact, heat and UV stabilised, black |
|
|
|
| Bundle ∅ max. | 127.0mm |
| Bundle ∅ min. | 127.0mm |
| for Hole ∅ (FH) | 12.7 - 13.7 mm |
| for Panel Thickness min - max | 1.9 - 13 mm |

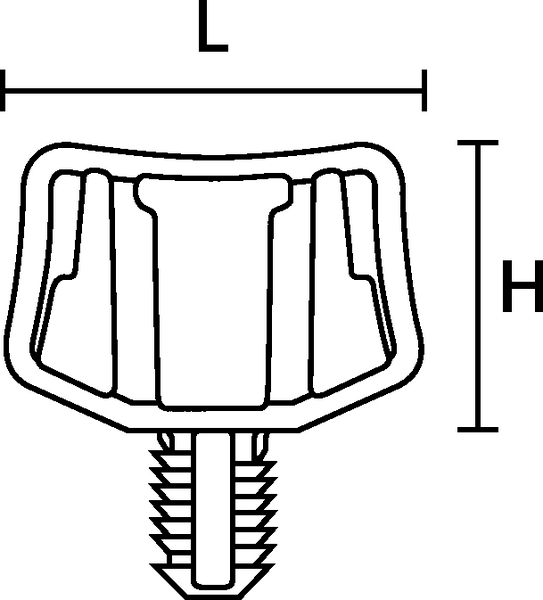

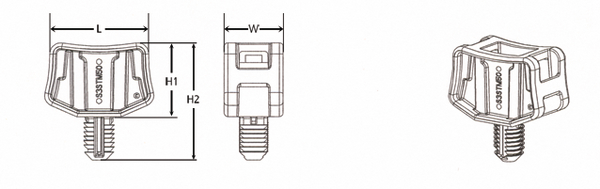

| Height (H) | 35.0mm |
| Height (H2) | 55.0mm |
| Length (L) | 50.0mm |
| Min.Tensile Strength | 0N |
| Panel Thickness max. | 1.9 mm - 13.0mm |

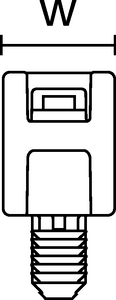

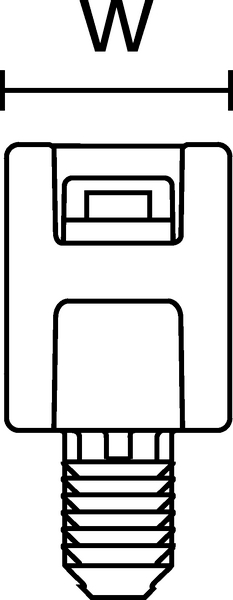

| Width (W) | 22.0mm |
| ∅ max. 1. loop | 127.0mm |
| ∅ max. 2. loops | 127.0mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min. Extr. Force (lbs) | 200.0lbs |
| Min. Extraction Force (N) | 890N |
| Operating Temperature - °C | -40 °C to +105 °C |
| Prop65 Warning | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026312484 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0039m³ |
| Packaging 1 - Weight (kg) | 1.5kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.225m |
| Packaging 3 - Length (m) | 0.605m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0538m³ |
| Packaging 3 - Weight (kg) | 8.35kg |
| Packaging 3 - Width (m) | 0.395m |
| Packaging 4 - Height (m) | 1.27m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 7500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.219m³ |
| Packaging 4 - Weight (kg) | 146.25kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.5kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
