19/04/2024

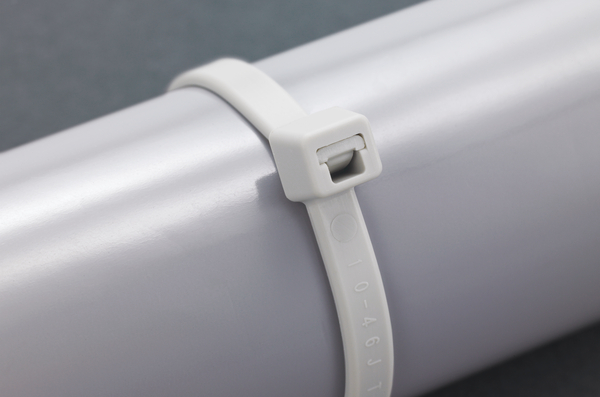

Cable tie inside serrated, 100x2.5mm, Ø1.0-22mm, natural, 1000pcs.
Art.-No. 111-01129 | AB100-PA66-NA |  Details

    Add to watchlist
    e-Learning
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Pack Cont. 1000pcs.
    Package Content packed in bag
    PART DESCRIPTION AB100-PA66-NA
    Releasable Closure (Yes/No) No
    Variant Inside Serrated
    Bundle Diameter max (metric) 22mm
    Bundle ∅ 1.0-22mm
    Bundle ∅ min. 1.0mm
    Cable Tie Head Height (metric) 3.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.8mm
    Length (L) 100mm
    Min.Tensile Strength 80N
    Thickness (T) 1.1mm
    Width (W) 2.5mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    Specifications
    Specifications ANSI/UL 62275
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E193818
    Country of Origin CN
    GTIN-13 / EAN 4944387103663
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
