Cable tie inside serrated, 202x4.6mm, Ø1.5-50mm, grey, 100pcs.
Art.-No. 111-01578 | AB200-PA66HSW-GY |  Details

    • Made of Polyamide 6.6 (PA66), heat and UV-resistance
    • For High Temperature and indoor/outdoor use
    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist
    e-Learning

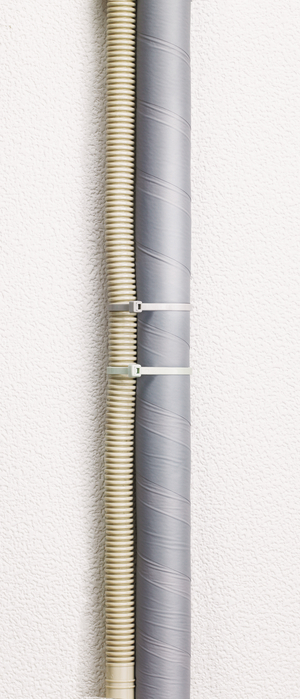

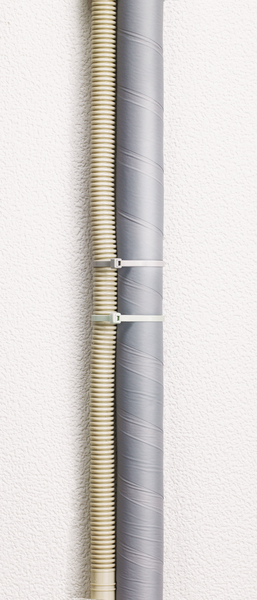

    Application AB-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Grey (GY)
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)

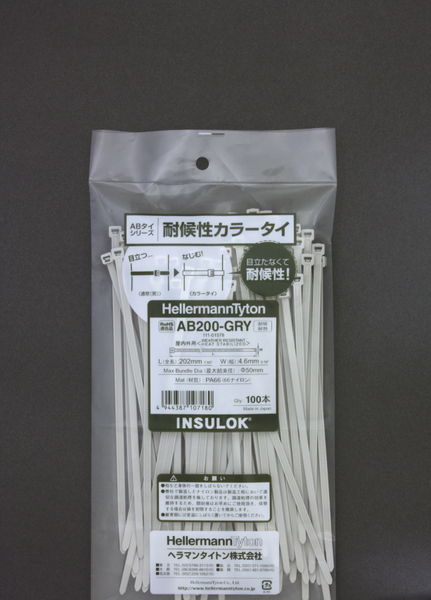

    Pack Cont. 100pcs.
    Package Content packed in bag
    PART DESCRIPTION AB200-PA66HSW-GY
    Product Family AB-Series cable ties
    Product Group Cable Ties for heat, UV-resistance and made of Polyamide 6.6 (PA66)
    Releasable Closure (Yes/No) No
    Variant Inside Serrated
    Bundle Diameter max (metric) 50mm
    Bundle ∅ 1.5-50mm
    Bundle ∅ min. 1.5mm
    Length (L) 202mm
    Min.Tensile Strength 225N
    Width (W) 4.6mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387107180
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
