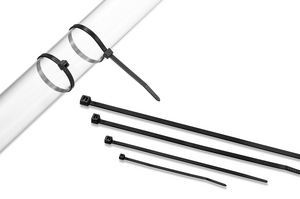

Cable tie inside serrated, 100.0x2.5mm, ⌀4-22mm, black, 100pcs.

Art.-No. 111-90011

| BDG100-PLAW-BK

|

Made of polylactic acid (PLA), a bioplastic derived from vegetable oil.
Under controlled industrial composting conditions, the material can decompose into water and carbon dioxide.

Add to watchlist

Downloads e-Learning

More products in this product group:

Biodegradable cable ties

Base Data

Colour	Black (BK)
Identification Plate Position	none
Material	Polylactic Acid, weather-resistant (PLAW)
Min.Tensile Strength	80N
PART DESCRIPTION	BDG100-PLAW-BK
Package Content	100pcs.
Package Content packed in	bag
Product Family	BDG-series
Product Group	Biodegradable cable ties
Releasable Closure (Yes/No)	No
Type	BDG100
Typical Application	These cable ties are made from polylactic acid (PLA), a bioplastic derived from vegetable oil. This product is authorized to display the JBPA Biodegradable BiomassPla certification mark under Certification No. 1336. When treated in an industrial composting facility under controlled conditions, the material undergoes hydrolysis and subsequent biodegradation by microorganisms. Under these specific conditions, the material can ultimately decompose into water and carbon dioxide.
Variant	Inside Serrated

Product Dimensions

Bundle ⌀	4-22mm
Bundle ⌀ max.	22mm
Bundle ⌀ min.	4mm
Cable Tie Head Height (metric)	3.5mm
Cable Tie Head Length (metric)	4.8mm
Cable Tie Head Width (metric)	4.8mm
Length (L)	100.0mm
Thickness (T)	1.1mm
Width (W)	2.5mm

Specifications

Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387128574

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703

Accessories

EVO7i 110-77001
Manual tensioning tool plastic housing

Add to watchlist

EVOcut 110-05005
Cutting tool for plastic ties

Add to watchlist

MK10-SB 110-10001
Manual tensioning tool for cable ties with low profile head

Add to watchlist

MK7P 110-07100
Pneumatic tensioning tool plastic housing

Add to watchlist

EVO7iSP 110-77002
Manual tensioning tool plastic housing

Add to watchlist

MK20 110-20006
Manual tensioning tool for cable ties, simple version

Add to watchlist

Similar products

BDG100-PLA-WH 111-90010

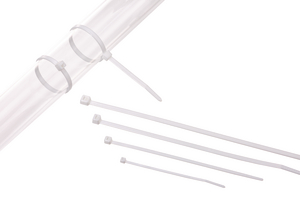

Cable tie inside serrated, 100.0x2.5mm, ⌀4-22mm, white, 100pcs.
