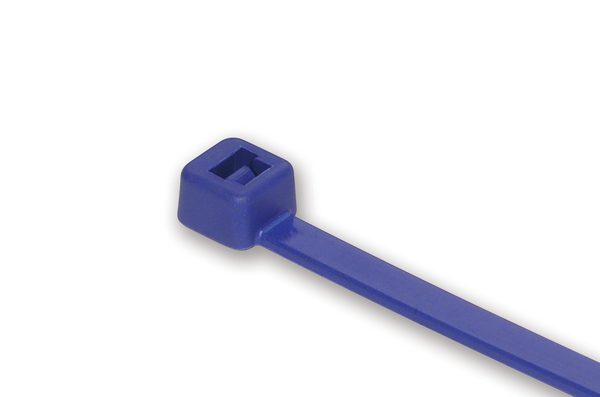

Cable tie inside serrated detectable, 201x4.7mm, ⌀10-50mm, blue, 100pcs.
Art.-No. 111-02719 | MCTXR200-PPMDXRAYDHS-BU |

Copied
MCT Series cable ties are metal detectable, to minimize the risk of foreign object contamination.
A safe and contamination free production process.
Our detectable MCT(S) cable ties are used in the food and pharmaceutical industry.
MCTPP ties have a high chemical and temperature resistance.
MCT(S)

    • Total metal dispersion throughout the tie.
    • Can support quality assurance in the production of food stuffs, for example HACCP.
    • Blue colour for easy visual detection.
    • Greatly reduces risk of contamination.
    • Perfect use for both X-ray and metal detectors (detection level depending on specific application and equipment).
    • MCTXR ties have very good corrosion resistance.
    Add to watchlist
    Downloads
    Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process.
    Colour Blue (BU)
    Identification Plate Position none
    Key product features detectable
    Material Polypropylene, metal detectable, X-ray detectable, heat stabilised (PPMDXRAYDHS)
    Min.Tensile Strength 150N
    PART DESCRIPTION MCTXR200-PPMDXRAYDHS-BU
    Package Content 100pcs.
    Product Family MCTXR-Series
    Product Group Cable Ties for food industry, detectable
    Tie Closure plastic pawl
    Type MCTXR200
    Variant Inside Serrated
    Bundle ⌀ 10-50mm
    Bundle ⌀ max. 50mm
    Bundle ⌀ min. 10mm
    Cable Tie Head Height (metric) 5.9mm
    Length (L) 201mm
    Thickness (T) 1.3mm
    Width (W) 4.7mm
    Operating Temperature -40 °C to +120 °C
    Country of Origin JP
    GTIN-13 / EAN 4944387129519
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
