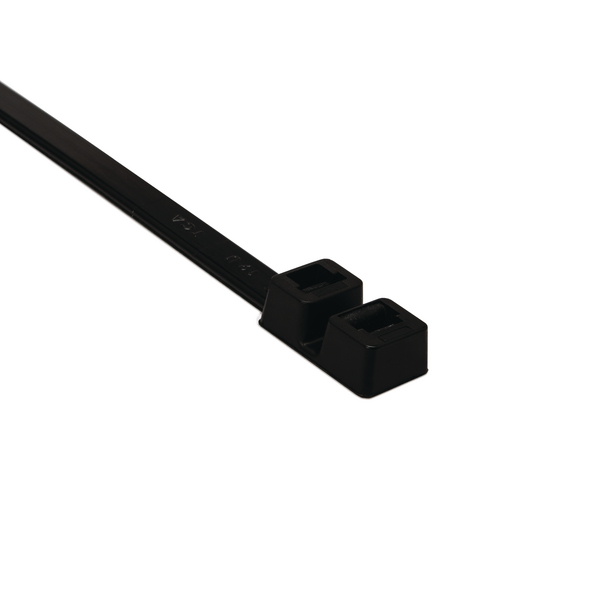

Cable Ties for parallel routing T120RDH

DH-Series, Article number: 117-05500

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool

Certifications & Approvals

Application

Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT, MK9SST
Colour Black (BK)
GLOBAL PART DESCRIPTION T120RDH-PA66-BK
Identification Plate Position none
Pack Cont. 500
Package Quantity per bag
Product Family DH-Series
Product Group Cable Ties for parallel routing
Releasable Closure (Yes/No) No
Variant Inside Serrated
Bundle ∅ max. 50.8mm
Bundle ∅ min. 4.6mm
Length (L) 398.0mm
Min. Tensile Strength 2nd loop 535.0N
Min.Tensile Strength 535.0N
Width (W) 7.6mm
∅ max. 1. loop 101.6mm
∅ max. 2. loops 50.8mm
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026419305
Packaging 1 - Height (m) 0.12m
Packaging 1 - Length (m) 0.46m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01849
Packaging 1 - Weight (kg) 3.245kg
Packaging 1 - Width (m) 0.335m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 1000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0343
Packaging 3 - Weight (kg) 6.99kg
Packaging 3 - Width (m) 0.32m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 160.8kg
Packaging 4 - Width (m) 0.8m
Weight 3.245kg
ETIM 6.0 EC000046
UNSPSC Key 39121703
