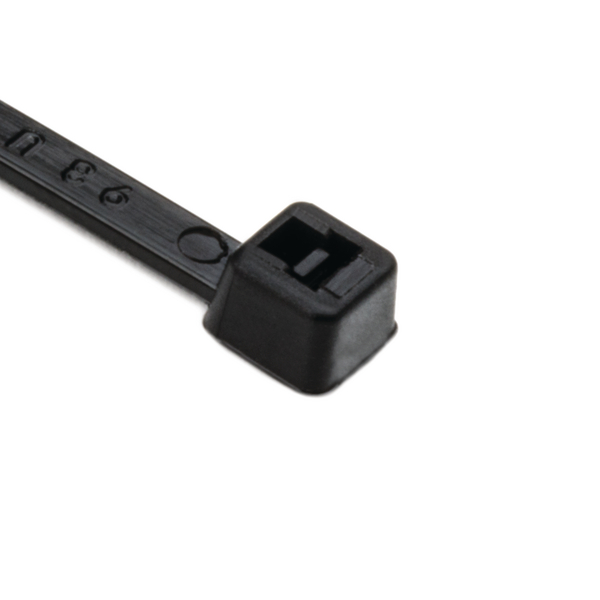

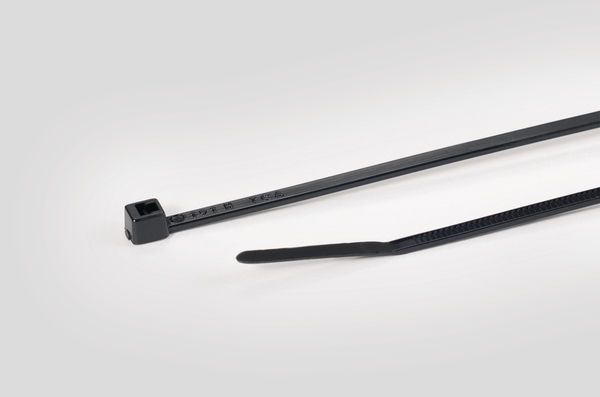

Cable Ties for temperatures up to + 105°C (heat stabilised) : T18R

Cable Tie 100x2.5 HS-black, Article number: 111-01950

Features

  • Heat stabilised cable ties (PA66HS) for temperatures up to +105 °C
  • Available in a wide range of sizes to cover almost every application
  • Inside serration provides a strong hold onto bundles
  • Manual and/or pneumatic tools available for greater process reliability
  • Commonly offered in natural and black, other colours available on request

Certifications & Approvals

Application

These inside serrated cable ties are made from heat stabilised Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation.

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Identification Plate Position none

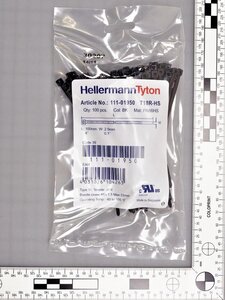

Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION T18R-PA66HS-BK
Product Group Cable Ties for temperatures up to + 105°C (heat stabilised)
Releasable Closure (Yes/No) No
Short Description Cable Tie 100x2.5 HS-black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 22.0mm
Bundle ∅ min. 1.5mm
Height (H) 3.7mm

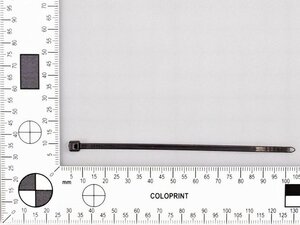

Length (L) 100.0mm
Min.Tensile Strength 80N
Thickness (T) 1.0mm
Width (W) 2.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, IEC 62275:2006
UL-File Number E85319
EAN / GTIN 4031026104263
Packaging 1 - Height (m) 0.014m
Packaging 1 - Length (m) 0.14m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00013
Packaging 1 - Weight (kg) 0.030001kg
Packaging 1 - Width (m) 0.065m
Packaging 2 - Height (m) 0.188m
Packaging 2 - Length (m) 0.136m
Packaging 2 - Qty 8000
Packaging 2 - Type carton
Packaging 2 - Volume (m³) 0.0096
Packaging 2 - Weight (kg) 2.54008kg
Packaging 2 - Width (m) 0.377m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 32000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 10.91032kg
Packaging 3 - Width (m) 0.4m

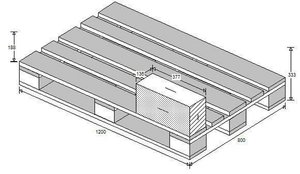

Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 640000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 239.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.03kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
