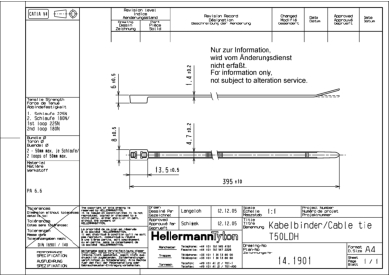

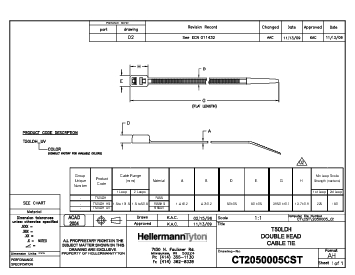

Cable tie inside serrated, 395.0x4.7mm, ∅1.6-101.6mm, natural, 100pcs.
Art.-No. 117-05402 | T50LDH-PA66-NA Details

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Show more
Package size
Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
Colour Natural (NA)
Identification Plate Position none
Key product features for multiple routing
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T50LDH-PA66-NA
Pack Cont. 100pcs.
Package Content packed in bag
Product Family DH-Series
Product Group Cable ties for parallel routing
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50LDH
Variant Inside Serrated
Bundle Diameter max (metric) 101.6mm
Bundle ∅ 1.6-101.6mm
Bundle ∅ min. 1.6mm
Cable Tie Head Height (metric) 6mm
Cable Tie Head Length (metric) 13.5mm
Cable Tie Head Width (metric) 8mm
Length (L) 395.0mm
Min. Tensile Strength 2nd loop 180.0N
Min.Tensile Strength 225N
Strap Width max. (G) 0.32"
Thickness (T) 1.4mm
Width (W) 4.7mm
∅ max. 1. loop 101.6mm
∅ max. 2. loops 50.8mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Type 11
UL-File Number E64139
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 5016371006034
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Width (m) 0.2873375m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
