Cable tie inside serrated for multiple routing, 395.0x4.7mm, ⌀1.6-101.6mm, black, 100pcs.
Art.-No. 117-05460 | T50LDH-PA66W-BK |

Copied

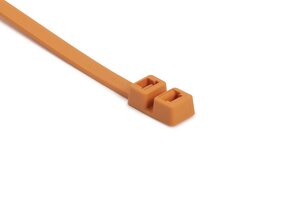

Double-head cable ties feature a dual locking design to secure two bundles at once.
DH-Series cable ties for parallel routing.
Parallel routing of two cable bundles using DH-Series.
Double-head cable ties feature a dual locking design to secure two bundles at once.
DH-Series
DH-Series maximum combined bundle diameter

    • Possibility to separate bundles with only one cable tie
    • Cable tie with two heads creating an inside and outside serrated loop
    • Available in a wide range of materials
    • Bundles can be of different diameter
    • Maximum bundle diameter is a maximum combined bundle
    • Easy application either manually or with a processing tool
    Add to watchlist
    Downloads e-Learning
    Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
    Colour Black (BK)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, UV-resistant (PA66W)
    Min. Tensile Strength 2nd loop 180.0N
    Min.Tensile Strength 225N
    PART DESCRIPTION T50LDH-PA66W-BK
    Package Content 100pcs.
    Package Content packed in pack
    Product Family DH-Series
    Product Group Cable ties for parallel routing
    Releasable Closure (Yes/No) No
    Short Description Two Head Cable Tie 395x4.7 UV-resistant black
    Tie Closure plastic pawl
    Type T50LDH
    UV-Stabilised Yes
    Variant Inside Serrated
    Weight/Unit 0.0028kg
    ⌀ max. 1. loop 101.6mm
    ⌀ max. 2. loops 50.8mm
    Bundle ⌀ 1.6-101.6mm
    Bundle ⌀ max. 101.6mm
    Bundle ⌀ min. 1.6mm
    Cable Tie Head Height (metric) 6mm
    Cable Tie Head Length (metric) 13.5mm
    Cable Tie Head Width (metric) 8mm
    Length (L) 395.0mm
    Strap Width max. (G) 0.32"
    Thickness (T) 1.4mm
    Width (W) 4.7mm
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type 11
    UL-File Number E64139
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026109008
    Packaging 1 - Height (m) 0.0004m
    Packaging 1 - Length (m) 0.177m
    Packaging 1 - Qty 100
    Packaging 1 - Type pack
    Packaging 1 - Volume (m³) 0.000017983m³
    Packaging 1 - Weight (kg) 0.280001kg
    Packaging 1 - Width (m) 0.254m
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 14.82005kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.263m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.212m³
    Packaging 4 - Weight (kg) 198.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
