31/05/2024

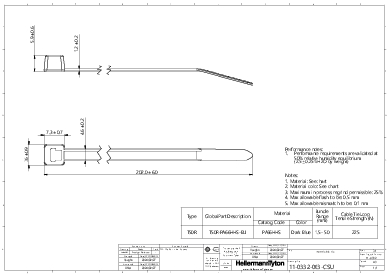

Cable tie inside serrated, 202.0x4.6mm, Ø1.5-50.0mm, blue/violet, 1000pcs.
Art.-No. 116-05020 | T50R-PA66HHS-BU/VT |  Details

Head design guarantees high tensile strength and a low insertion force.

    • Heat stabilized cable ties (PA66HS) for temperatures up to +105 °C
    • Available in a wide range of sizes to cover almost every application
    • Inside serration provides a strong hold onto bundles
    • Manual and/or pneumatic tools available for greater process reliability
    • Commonly offered in natural and black, other colors available on request
    Show more
    Add to watchlist
    Downloads Datasheet
    e-Learning
    Application These inside serrated cable ties are made from heat stabilized Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Dark Blue (DKBU), Purple (PE)
    Identification Plate Position none
    Material Polyamide 6.6, high heat stabilised (PA66HHS)
    PART DESCRIPTION T50R-PA66HHS-BU/VT
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Group Cable Ties for temperatures up to + 105°C (heat stabilised)
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.5-50.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Height (metric) 5.9mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.3"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026699141
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 5000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 7.14kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
