Cable tie outside serrated for narrow space, 750x19.5mm, ⌀50.0-215mm, black, 20pcs.

???product.artNr??? 112-61000

| XPE500L-BK

|

???product.discontinued???

???product.discontinued.contact???

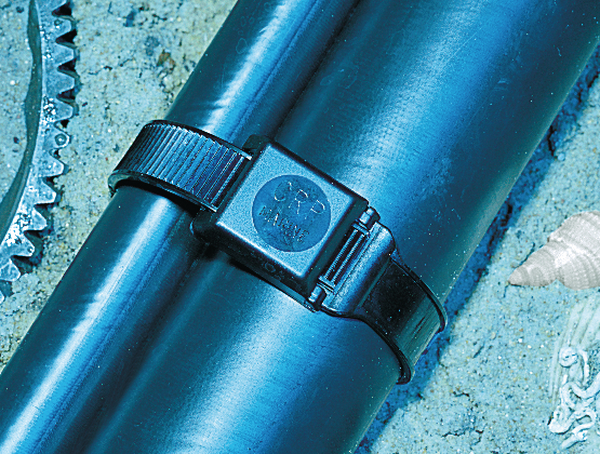

Outside serrated cable tie with a smooth surface to the bundle
Broad contact area with the bundle minimises risk of damage
Low profile head for ideal use in restricted spaces
Parallel entry for optimal fit around circular bundles

???myht.addtowatchlist???

???product.productgroup.title???:

Cable ties with low profile head

Base Data

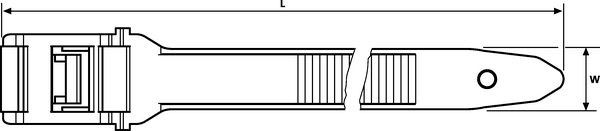

Product Dimensions

Base Data

???product.application???	XPE500 Series, High Strength Bundling Tie ideal for heavy cable harnesses nearly throughout all industries.
Colour	Black (BK)
Fixation Method	Others
Identification Plate Position	none
Key product features	for narrow space
Min.Tensile Strength	2225N
PART DESCRIPTION	XPE500L-BK
Package Content	20pcs.
Package Content packed in	pcs.
Product Family	PE-Series
Product Group	Cable ties with low profile head
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	XPE500L
Variant	Outside Serrated

Product Dimensions

Bundle ⌀	50.0-215mm
Bundle ⌀ max.	215mm
Bundle ⌀ min.	50.0mm
Length (L)	750mm
Width (W)	19.5mm

Specifications

Flammability	UL 94 HB
Operating Temperature	-45 °C to +70 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	4031026190990
Packaging 1 - Qty	20
Packaging 1 - Weight (kg)	1.0282kg
Packaging 3 - Qty	200
Packaging 4 - Length (m)	1.20m
Packaging 4 - Qty	3000
Packaging 4 - Type	pallet
Packaging 4 - Weight (kg)	174.0kg
Packaging 4 - Width (m)	0.80m

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
