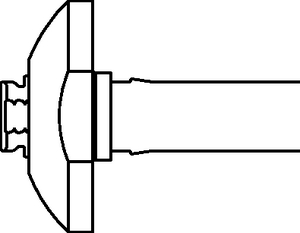

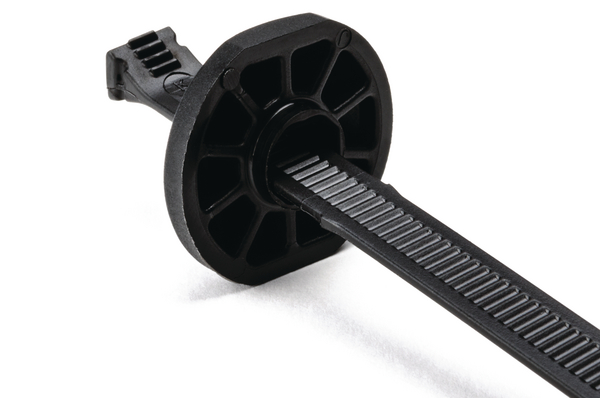

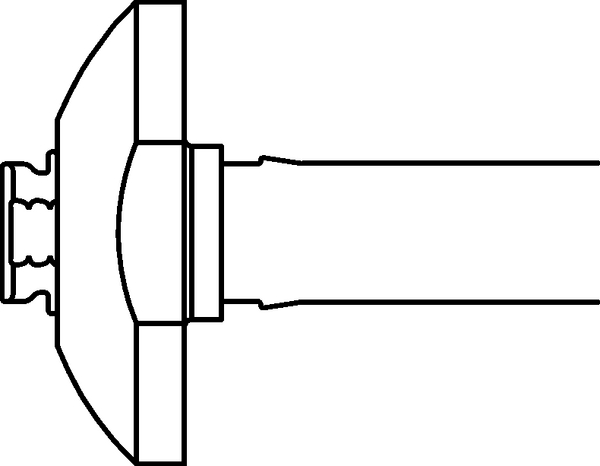

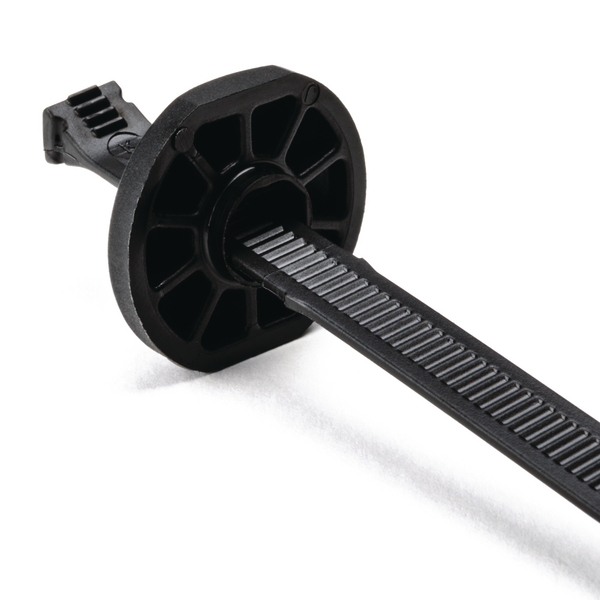

Cable Ties for single hole application (Chassis Tie) : BT130LDP
Article number: 132-00009
Features
- Both sides serrated cable tie
- BHT-Series with round head for larger bearing area
- BHT375 for centred position
- CT- and DE-Series with small squared head for restricted space areas
- Tensioning with application tool
Certifications & Approvals
Application
Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.
More products in this product group
Cable Ties for single hole application (Chassis Tie) >| Colour | Black (BK) |
| Fixation Method | Connector Clip |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | BT130LDP-PA66HIRHSUV-BK |
| Product Group | Cable Ties for single hole application (Chassis Tie) |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
|
|
|
| Bundle ∅ max. | 110.0mm |
| Bundle ∅ min. | 6.4mm |
| for Hole ∅ (FH) | 25.4 mm |
| Length (L) | 381.5mm |
| Min.Tensile Strength | 578.0N |
| Width (W) | 7.6mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Material Head | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026421971 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00432m³ |
| Packaging 1 - Weight (kg) | 0.300401kg |
| Packaging 1 - Width (m) | 0.27m |
| Packaging 3 - Height (m) | 0.225m |
| Packaging 3 - Length (m) | 0.605m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0538m³ |
| Packaging 3 - Weight (kg) | 6.85802kg |
| Packaging 3 - Width (m) | 0.395m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 15000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 123.87kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.3004kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121703 |
