25/04/2024

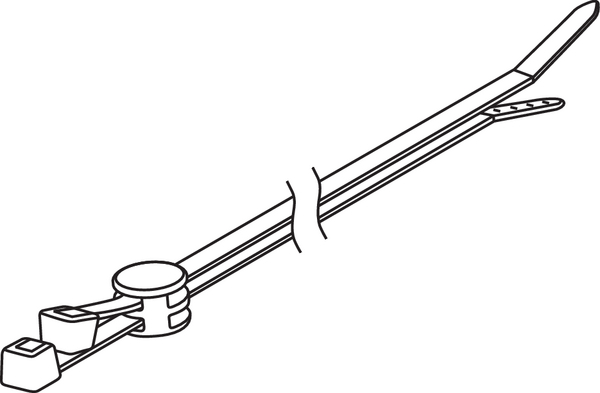

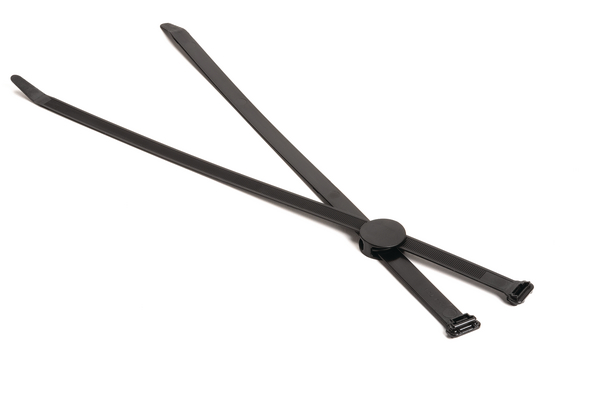

Fixing tie, inside serrated, Ø15.0-98.0mm, black, 500pcs.
Art.-No. 156-03014 | DUALWSRASSY-PA66HIRHSUV-BK |  Details

Wide strap ties minimize pinching of soft hoses and convoluted tubing, while the coupler protects routings from friction and abrasion.

    • Pre-assembled 2-piece fixing tie with coupler
    • Cable tie head can be moved after bundling
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 90° even after installation
    Add to watchlist
    Colour Black (BK)
    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    For Ties T120
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION DUALWSRASSY-PA66HIRHSUV-BK
    Product Family twistable up to 90°
    Product Group 2-piece fixing ties for parallel separation
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 98.0mm
    Bundle ∅ 15.0-98.0mm
    Bundle ∅ min. 15.0mm
    Height (H) 10.86mm
    Length (L) 383.0mm
    Min.Tensile Strength 535N
    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026644721
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
