Fixing tie, inside serrated, ⌀15.0-51.0mm, brown, 100pcs.
Art.-No. 156-03013 | DUALWSSASSY-PA46-BN

Copied

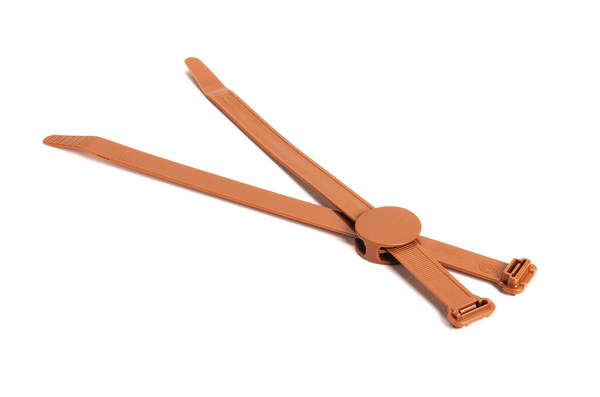

Three-piece wide strap tie and coupler assembly bundles and separates two routings at any angle from parallel to 90 degrees from each other.
Two Cable Ties with Coupler
Cable Ties with Coupler
T-Series with Coupler

    • Three-piece wide strap tie and coupler assembly bundles and separates two routings at any angle from parallel to 90 degrees from each other.
    • Wide strap ties minimize pinching of soft hoses and convoluted tubing, while the coupler protects routings from friction and abrasion.
    • Space-saving coupler means more room for routings.
    Add to watchlist
    Downloads
    Color Brown (BN)
    Description Couplers simplify connecting two cable ties for routing and separating bundles. Designed to allow up to 90 degrees of rotation, these assemblies are ideal for applications in which the bundle, pipe or hose requires slight movement in relation to the fastening point. Manufactured using PA46 high-heat material.
    Min. Tensile Strength (imperial) 120lbs
    Min. Tensile Strength (metric) 535N
    PART DESCRIPTION DUALWSSASSY-PA46-BN
    Packaging Type pack
    Part No. 156-03013
    Product family 3-Piece Tie Assemblies
    Product family Products for parallel/multiple routing
    Short Desc. 3-Piece Wide Strap Tie with Coupler, 9.1" Long, 0.37" - 2.25" Dia, 120lbs, PA46, Brown, 100/bg
    Type DUALWSSASSY
    UV Resistant No
    Cable Tie Closure plastic pawl
    Cable Ties T120
    Height (imperial) 0.43"
    Height (metric) 10.86mm
    Length (imperial) 9.1"
    Length (metric) 231.0mm
    Max. Bundle Diameter (imperial) 2.01"
    Max. Bundle Diameter (metric) 51.0mm
    Min. Bundle Diameter (imperial) 0.59"
    Min. Bundle Diameter (metric) 15.0mm
    Width (imperial) 0.5"
    Width (metric) 12.7mm
    CE Certification No
    CSA Certified No
    Material PA46
    Material Polyamide 4.6 (PA46)
    Operating Temperature -40°F to +266°F (-40°C to +130°C)
    Prop65 Warning Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 100
    Pkg. Qty. 100Pieces
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
