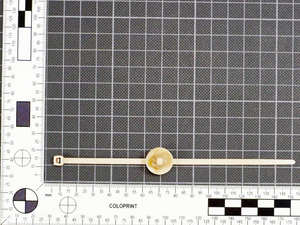

2-Piece Fixing Ties with Arrowhead, with Disc PT2AP3SFT6.5

For Temperatures up to +240 °C, Article number: 156-01146

Features

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Features Material PEEK
  • -55 °C to +240 °C operating temperature
  • Excellent resistance against chemicals and gamma radiation

Certifications & Approvals

Application

The ties with fixing element P1SFT6,5 or P2SFT6,5 are ideal when the requirement for temperature or chemical resistance is very high. They are used for cable harnesses in the automotive industry.

For Temperatures up to +240 °C is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Beige (BGE)
Description Short (BMEcat) (max. 150 characters) 2-Piece fixing tie 145x3.4 mm, with arrowhead, PEEK, beige
Fixation Method Arrowhead
Identification Plate Position none

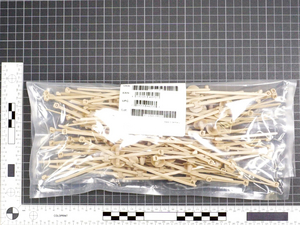

Pack Cont. 100pcs.
Package Quantity per bag
PART DESCRIPTION PT2AP3SFT6.5-PEEK-BGE
Product Family For Temperatures up to +240 °C
Product Group 2-Piece Fixing Ties with Arrowhead, with Disc
Tie Closure plastic pawl
Bundle ∅ max. 32.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 1.2 - 1.8 mm
for Panel Thickness min - max 0.1 - 0.1 "
Length (L) 145.0mm
Min.Tensile Strength 230N
Panel Thickness max. 1.2 –1.8mm
Thickness (T) 1.2mm
Width (W) 3.4mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Polyetheretherketone (PEEK)
Operating Temperature - °C -55 °C to +240 °C
Specifications
EAN / GTIN 4031026469720
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.1544kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 3.738kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 95.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.14kg
ETIM 6.0 EC000046
