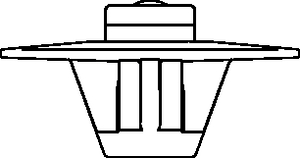

Fixing tie for stud, inside serrated, ⌀1.5-18.0mm, black, 500pcs.
Art.-No. 156-01362 | T18RSBH5SD-SET-PA66HS-BK

Copied
SBH5SD

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Color Black (BK)
    Min. Tensile Strength (metric) 80N
    PART DESCRIPTION T18RSBH5SD-SET-PA66HS-BK
    Packaging Type bag
    Part No. 156-01362
    Product family Stud Mounts
    Product family Products to use on studs
    Type T18RSBH5SD-SET
    Cable Tie Closure plastic pawl
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Length (metric) 100mm
    Max. Bundle Diameter (metric) 18.0mm
    Min. Bundle Diameter (metric) 1.5mm
    Releasable Closure No
    Stud Diameter (metric) 5.0 mm
    Width (metric) 2.5mm
    Flammability UL 94 V-2
    Material PA66HS
    Material Polyamide 6.6 heat stabilized (PA66HS)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    ROHS compliant Yes
    Customs Number (Schedule B) 39269099
    Pkg. Qty. 500Pieces
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
