Fixing tie for edge, inside serrated, ⌀1.5-35.0mm, black, 500pcs.
Art.-No. 156-00682 | T30RATSEC36-PA66HS/PA66HIRHS-BK

Copied

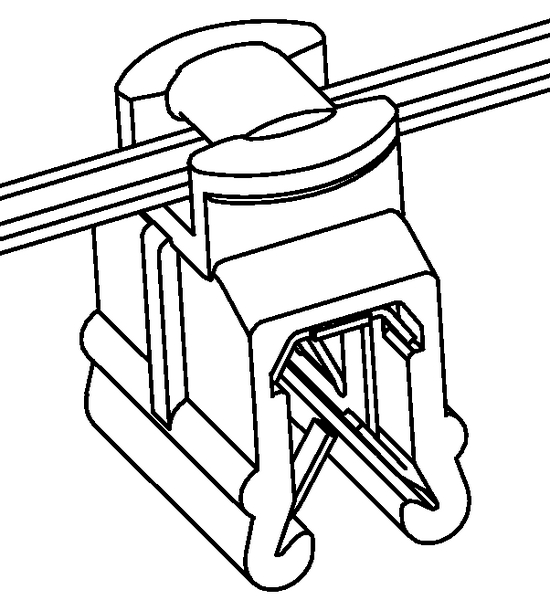

    • HellermannTyton’s cable tie and edge clip assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole.
    • The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
    Add to watchlist
    Downloads e-Learning
    Color Black (BK)
    Min. Tensile Strength (metric) 135N
    PART DESCRIPTION T30RATSEC36-PA66HS/PA66HIRHS-BK
    Packaging Type bag
    Part No. 156-00682
    Product family 2-Piece Tie Assemblies
    Product family Edge fixation products
    Type T30RATSEC36
    Height (metric) 1.1mm
    Height 2 (metric) 18.9mm
    Identification Plate Position none
    Length (metric) 148.0mm
    Length 2 (metric) 15.0mm
    Max. Bundle Diameter (metric) 35.0mm
    Max. Panel Thickness (metric) 4.00mm
    Min. Bundle Diameter (metric) 1.5mm
    Min. Panel Thickness (metric) 1.50mm
    Panel Thickness (metric) 1.5-4.0mm
    Width (metric) 3.6mm
    Width 2 (metric) 10.0mm
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    ROHS compliant Yes
    Pkg. Qty. 500Pieces
