27/04/2024

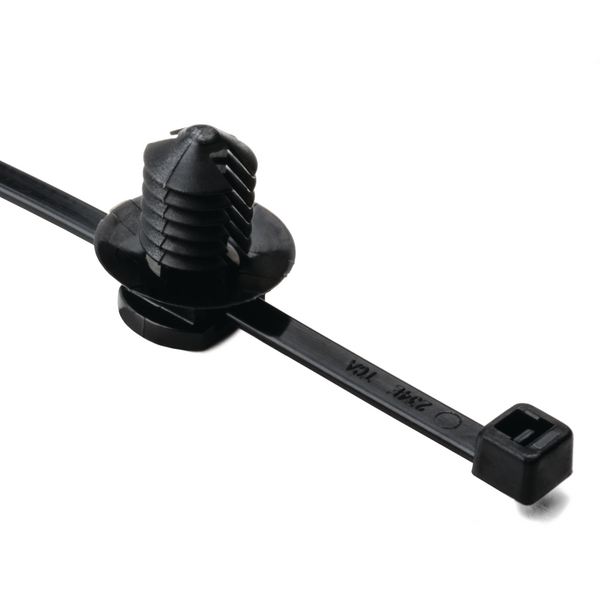

Fixing tie for hole (round), inside serrated, Ø4.0-36.0mm, black, 500pcs.
Art.-No. 156-00375 | T30RFT8-PA66HS-BK |  Details

Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T30RFT8-PA66HS-BK
    Product Family Fir tree parts FT8
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 36.0mm
    Bundle ∅ 4.0-36.0mm
    Bundle ∅ min. 4.0mm
    Disc ∅ 16.0mm
    for Hole ∅ (FH) 7.7 - 8.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    for Panel Thickness min - max 0 - 0.3 "
    Height (H) 1.10mm
    Height (H2) 12.70mm
    Length (L) 148.0mm
    Length (L2) 12.0mm
    Length (L3) 17.8mm
    Min.Tensile Strength 135N
    Panel Thickness max. 0.8 - 6.0mm
    Width (W) 3.6mm
    Width (W2) 9.0mm
    Width (W3) 9.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026416359
    Packaging 3 - Weight (kg) 6.66kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
