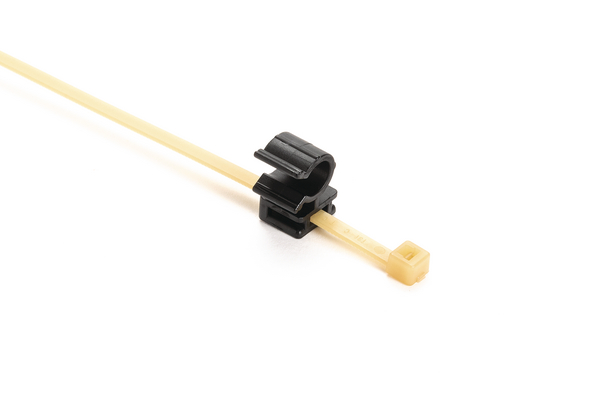

Fixing tie with pipe/tube holder, Ø4.0-31.0mm, natural/black, 500pcs.
Art.-No. 156-00838 | T30ROC2B-PA46/PA66HIRHS-NA/BK |  Details

    Add to watchlist
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Cable Tie Polyamide 4.6 (PA46)
    Colour Natural (NA), Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 4.6 (PA46), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T30ROC2B-PA46/PA66HIRHS-NA/BK
    Product Group 2-piece fixing ties with pipe clip
    Tie Closure plastic pawl
    Attach to Diameter 0.26 - 0.30 "
    Attach to Ø 6.5 - 7.5mm
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 4.0-31.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 16.8mm
    Length (L) 148.0mm
    Min.Tensile Strength 135N
    Thickness (T) 1.1mm
    Weight/Unit 0.001668kg
    Width (W) 3.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    Specifications
    UV-Stabilised No
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026435046
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.38m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01102m³
    Packaging 1 - Weight (kg) 0.834001kg
    Packaging 1 - Width (m) 0.29m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 7.492008kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 170.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
