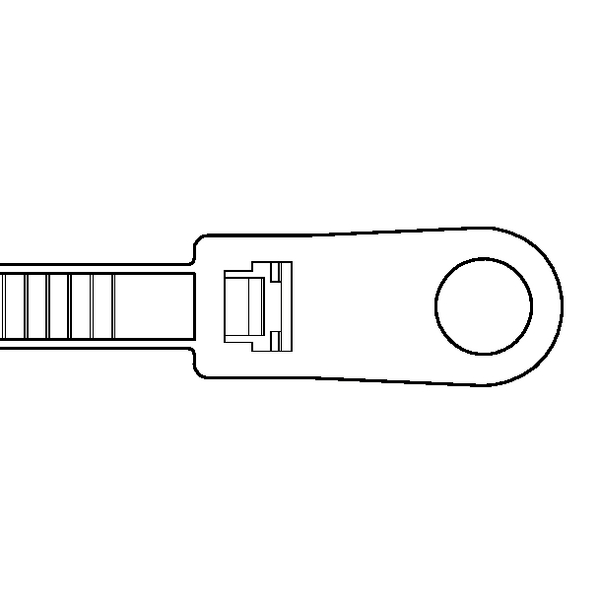

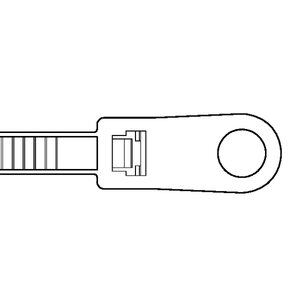

Fixing tie for screw fixation, inside serrated, ∅1.5-45.0mm, black, 1000pcs.
Art.-No. 113-05002 | T50MR-PA66-BK Details

  • One-piece bundling and fixing tie
  • Quick and easy installation
Package size
Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
Colour Black (BK)
Fixation Method Screw Mount
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Mounting Screw Type #10 (M5) Screw
PART DESCRIPTION T50MR-PA66-BK
Pack Cont. 1000pcs.
Package Content packed in bag
Product Family MR Series
Product Group 1-piece fixing ties with mounting head for screws
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50MR
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 1.5-45.0mm
Bundle ∅ min. 1.5mm
Height (H) 5.70mm
Length (L) 215.9mm
Mechanical Strength 133.5N
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.7mm
for Hole ∅ (FH) 5.4 mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Plenum Rating AH-2
ROHS compliant Yes
Specifications
Specifications UL 62275
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 4031026421414
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Weight (kg) 9.13kg
Packaging 3 - Width (m) 0.396875m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
