24/06/2026

Fixing tie to close hole, inside serrated, ⌀1.5-50.0mm, black, 3000


Art.-No. 156-03287

| T50RBHM8-PA66HIRHSUV/POM-BK

 |

Copied
30477591
26084983
30029482

    • Delivers high pull-out strength for reliable performance, yet it’s easy to install.
    • Reusable fastener can be removed from threaded or nonthreaded holes using a 5/16" hex driver.
    • Heat-stabilized material provides excellent resistance to high temperatures.
    Add to watchlist
    Downloads e-Learning
    T50R 111-01566
    Cable Ties impact modified
    Add to watchlist
    Colour Black (BK)

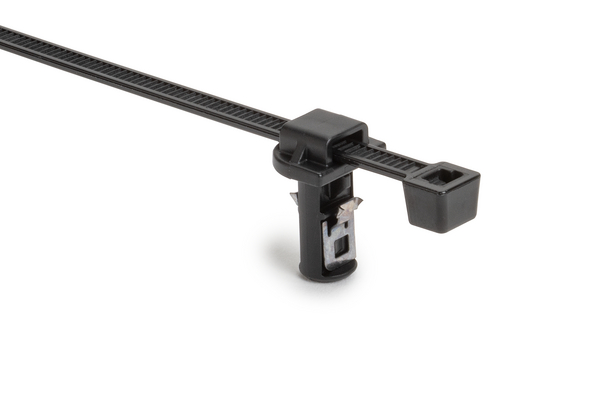

    Description HellermannTyton Blind Hole Mount Cable Ties for threaded and nonthreaded holes offer an easy-to-use method for bundling and affixing cables. The two-piece design includes a heat-stabilized cable tie and formula-matched, 1/4" mount that features a low push-in force and aggressively resists pull out. Performs equally well in threaded or nonthreaded blind holes. Mount can slide along cable tie to adjust orientation if needed. Fastener can be removed from hole using a hex driver, ensuring reuse if desired.
    Fixation Method Blind Plug
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyacetal (POM)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RBHM8-PA66HIRHSUV/POM-BK
    Package Content 3000
    Package Content packed in pack
    Product Family For Threaded and Nonthreaded Holes
    Product Group Blind Hole Mount Cable Tie
    Type T50RBHM8
    UV-Stabilised Yes
    Bundle ⌀ 1.5-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 1.5mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Disc ⌀ 13.5mm
    Height (H) 15.75mm
    Height (H2) 21.1mm
    Hole Depth 14.0mm
    Length (L) 202.0mm
    Panel Thickness 14.0mm
    Strap Width max. (G) 0.30"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 13.5mm
    for Hole ⌀ (FH) 8.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026734453
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.34m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0738m³
    Packaging 3 - Width (m) 0.381m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
