04/11/2025

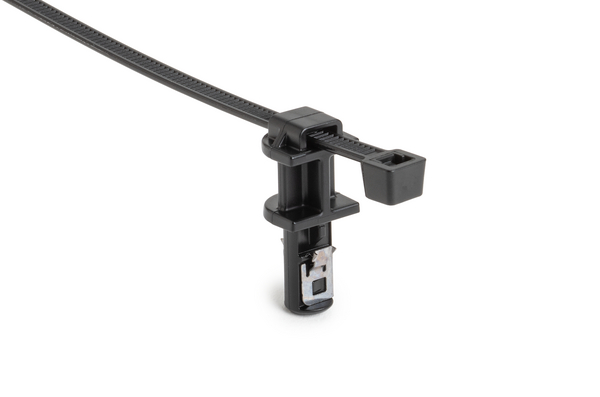

Fixing tie to close hole, inside serrated, ⌀1.5-50.0mm, black, 3000
Art.-No. 156-03289 | T50RBHM8SO16-PA66HIRHSUV/POM-BK |

Copied

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Blind Plug
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyacetal (POM)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RBHM8SO16-PA66HIRHSUV/POM-BK
    Package Content 3000
    Package Content packed in pack
    Type T50RBHM8SO16
    UV-Stabilised Yes
    ⌀ D 0.3"
    Bundle ⌀ 1.5-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 1.5mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Diameter (D) 7.62mm
    Disc ⌀ 13.5mm
    Height (H) 16.25mm
    Height (H2) 15.75mm
    Hole Depth 14.0mm
    Length (L) 202.0mm
    Offset Length 16.0mm
    Panel Thickness 14.0mm
    Strap Width max. (G) 0.30"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 8.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026734477
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
