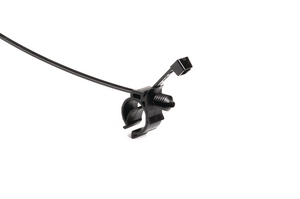

Fixing tie with pipe/tube holder/for hole (round), ⌀1.5-50.0mm, black, 2000pcs.
Art.-No. 156-01245 | T50RCTCFT6-PA66HS/PA66HIRHS-BK

Copied
T50RCTC8FT6.
Pipe Clip CBTO, twistable 90°.

    • For post-installation of additional cables for pre-assembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • For OC1 and 2A additional cable tie dimensions are available
    • CBTO-series for cable ties up to 5 mm
    Add to watchlist
    Downloads e-Learning
    Color Black (BK)
    Description HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
    Key product features rotatable, for multiple routing, removable
    Min. Tensile Strength (imperial) 50lbs
    Min. Tensile Strength (metric) 222N
    PART DESCRIPTION T50RCTCFT6-PA66HS/PA66HIRHS-BK
    Packaging Type carton
    Part No. 156-01245
    Product family 2-Piece Tie Assemblies
    Product family Fixing ties for holes, Products for wires and hoses
    Short Desc. 2-Piece Cable Tie with Pipe Clip 11-15mm, 8.0" Tie, 50lb Tensile Strength, PA66HS/PA66HIRHS, BK, 2000/ctn
    Type T50RCTCFT6
    Fixation Method Omega Clip
    Identification Plate Position none
    Max. Bundle Diameter (imperial) 1.97"
    Max. Bundle Diameter (metric) 50.0mm
    Max. Panel Thickness (metric) 4.5mm
    Min. Bundle Diameter (imperial) 0.06"
    Min. Bundle Diameter (metric) 1.5mm
    Min. Panel Thickness (metric) 0.7mm
    Mounting Hole Diameter (metric) 6.5 mm
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Material Foot Part PA66HIRHS
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    ROHS compliant Yes
    Customs Number (Schedule B) 3926909988
    Pkg. Qty. 2000Pieces
    Pkg. Qty. 2000
