01/05/2024

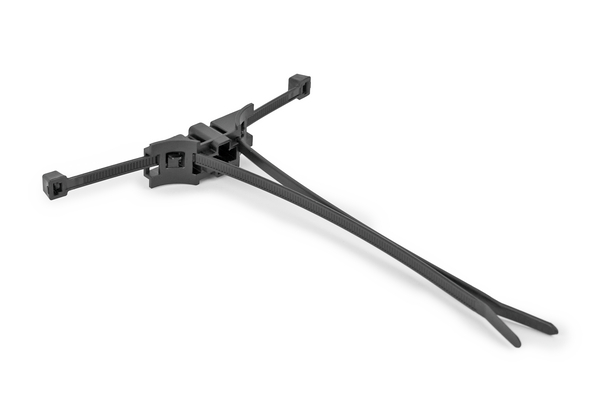

Fixing tie for stud, Ø1.5-45.0mm, black, 250pcs.
Art.-No. 156-03124 | T50RDSBS5-6-PA66HIRHSUV-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type M5 Screw, M6 Screw
    Pack Cont. 250pcs.
    Package Content packed in bag
    PART DESCRIPTION T50RDSBS5-6-PA66HIRHSUV-BK
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 200.0mm
    Length (L2) 45.8mm
    Min.Tensile Strength 225N
    Stud ∅ T5, M5, M6, T6
    Thickness (T) 1.2mm
    Weight/Unit 0.0015kg
    Width (W) 4.6mm
    Width (W2) 17.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026651705
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.375001kg
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0828m³
    Packaging 3 - Weight (kg) 2.905006kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 18000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 55.86kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Show all

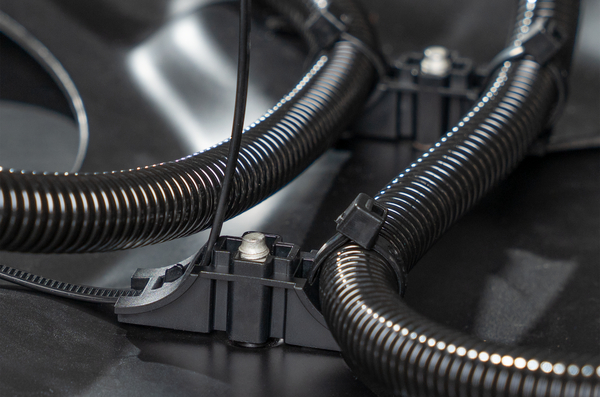

    Cable holder Cable holder
