26/04/2024

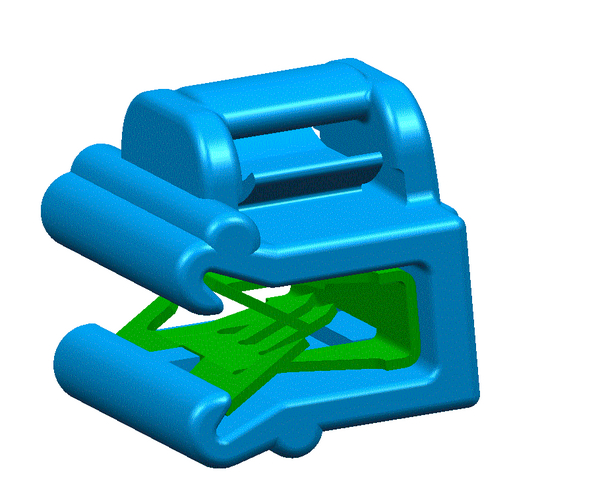

Fixing tie for edge, inside serrated, Ø1.0-45.0mm, black, 5000pcs.
Art.-No. 156-00181 | T50REC22SET-PA66HS/PA66HIRHS-BK |  Details

T50ROSEC10 fitted onto a plastic panel to hold a Ø 6 mm harness.

    Add to watchlist
    Downloads
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Black (BK)
    Content 3000 T50R + 3000 EC22
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Cont. 5000pcs.
    Package Content packed in box
    PART DESCRIPTION T50REC22SET-PA66HS/PA66HIRHS-BK
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.0-45.0mm
    Bundle ∅ min. 1.0mm
    for Panel Thickness min - max 1 - 3 mm
    Height (H) 1.2mm
    Height (H2) 12.5mm
    Length (L) 200.0mm
    Length (L2) 15.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.002946kg
    Width (W) 4.6mm
    Width (W2) 9.2mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026267395
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 15.38kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 328.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Show all
