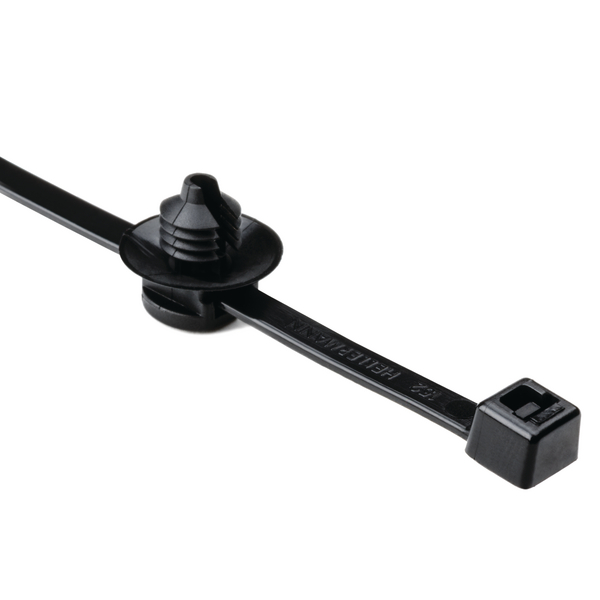

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes : T50RFT6

Fir Tree Parts FT6, Article number: 156-00157

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Identification Plate Position none
Pack Cont. 500
Package Quantity per bag
PART DESCRIPTION T50RFT6-PA66HS/PA66HIRHS-BK
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H2) 7.5mm
Length (L) 202.0mm
Min.Tensile Strength 225N
Panel Thickness max. 0.75–3.0mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026512846
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
