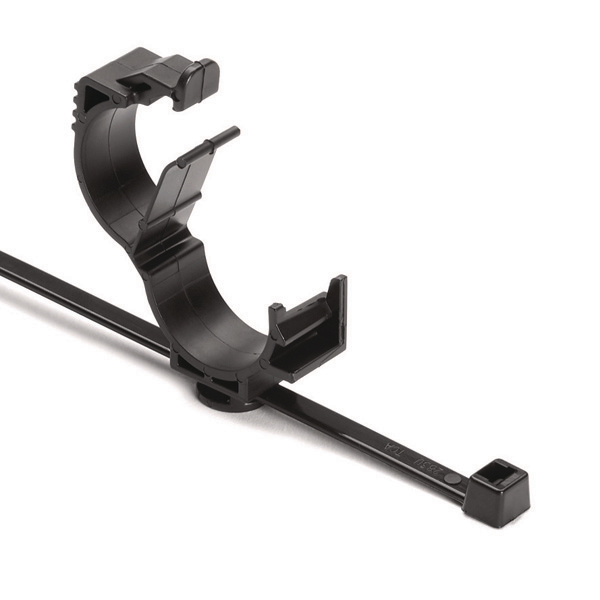

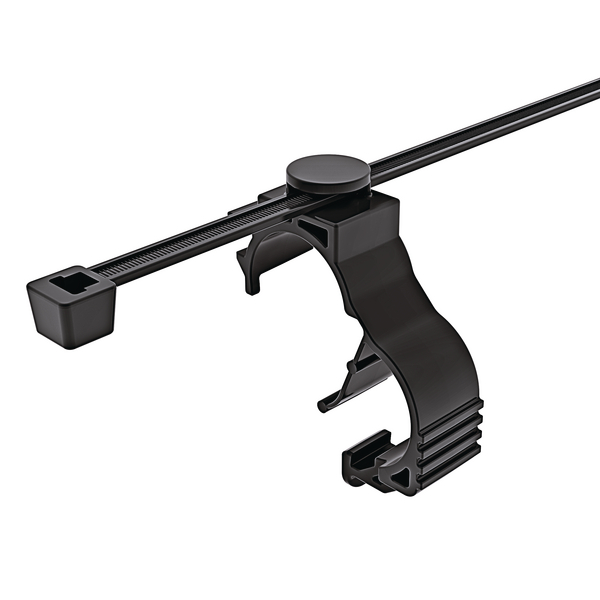

Fixing tie with pipe/tube holder, inside serrated, ⌀10.0-14.0mm, black, 500pcs.
Art.-No. 156-01166 | T50RLOC10-14-SET-PA66HS/PA66HIRHS-BK

Copied
The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.

    • The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.
    • Clamp can be opened for bundle maintenance.
    • Low-profile release tab won't interfere with bundle or nearby routing.
    • The two bundles are allowed to rotate up to 90 degrees from one another.
    Add to watchlist
    Downloads
    Color Black (BK)
    Description The 2-Piece LOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a semi-fixed orientation for each bundle. The saddle design allows 90-degree rotation of the bundles. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.
    Key product features rotatable, for multiple routing, removable
    Min. Tensile Strength (metric) 225N
    PART DESCRIPTION T50RLOC10-14-SET-PA66HS/PA66HIRHS-BK
    Packaging Type bag
    Product family Harness Clips
    Product family Products for wires and hoses
    Type T50RLOC10-14-SET
    Cable Tie Closure plastic pawl
    Fixation Method Omega Clip
    Identification Plate Position none
    Length (metric) 43.73mm
    Max. Bundle Diameter (imperial) 0.55"
    Max. Bundle Diameter (metric) 14.0mm
    Max. Cable Diameter (imperial) 1.97"
    Max. Cable Diameter (metric) 50.0mm
    Miin. Cable Diameter (imperial) 0.20"
    Min. Bundle Diameter (imperial) 0.39"
    Min. Bundle Diameter (metric) 10.0mm
    Min. Cable Diameter (metric) 5.0mm
    Nominal Bundle Diameter (imperial) 0.39" - 0.55"
    Nominal Bundle Diameter (metric) 10.0 mm - 14.0 mm
    Releasable Closure No
    Width (metric) 12.0mm
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    ROHS compliant Yes
    Pkg. Qty. 500Pieces
    Pkg. Qty. 500
